Heating & Electric Air Conditioner 4 Duct 401-4 Kit

Classic Car Air 4 duct under dash heating and electric air conditioner kit with thermostat control.
Made to retro-fit into most 12v ground cars, panel van's, wagons and utes, mini vans.
Connect the ducts up to the original heater, demister or any fitted or custom vents.

Included parts:

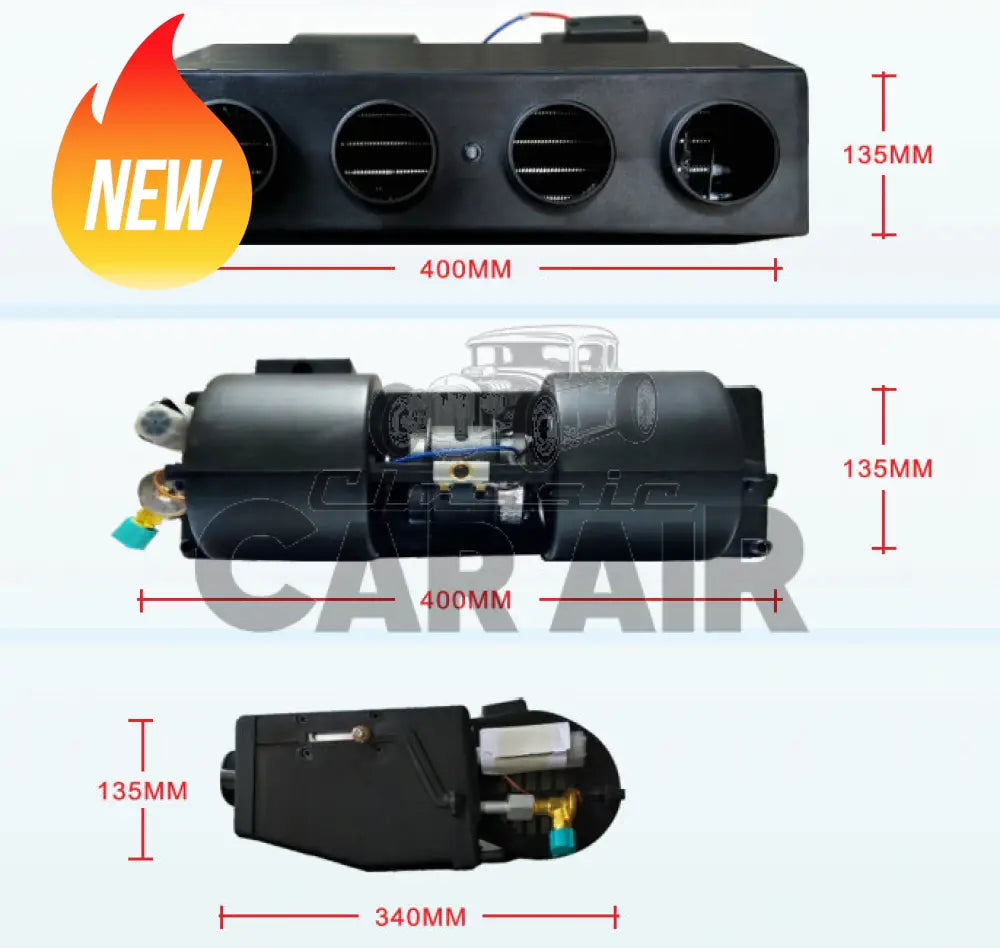

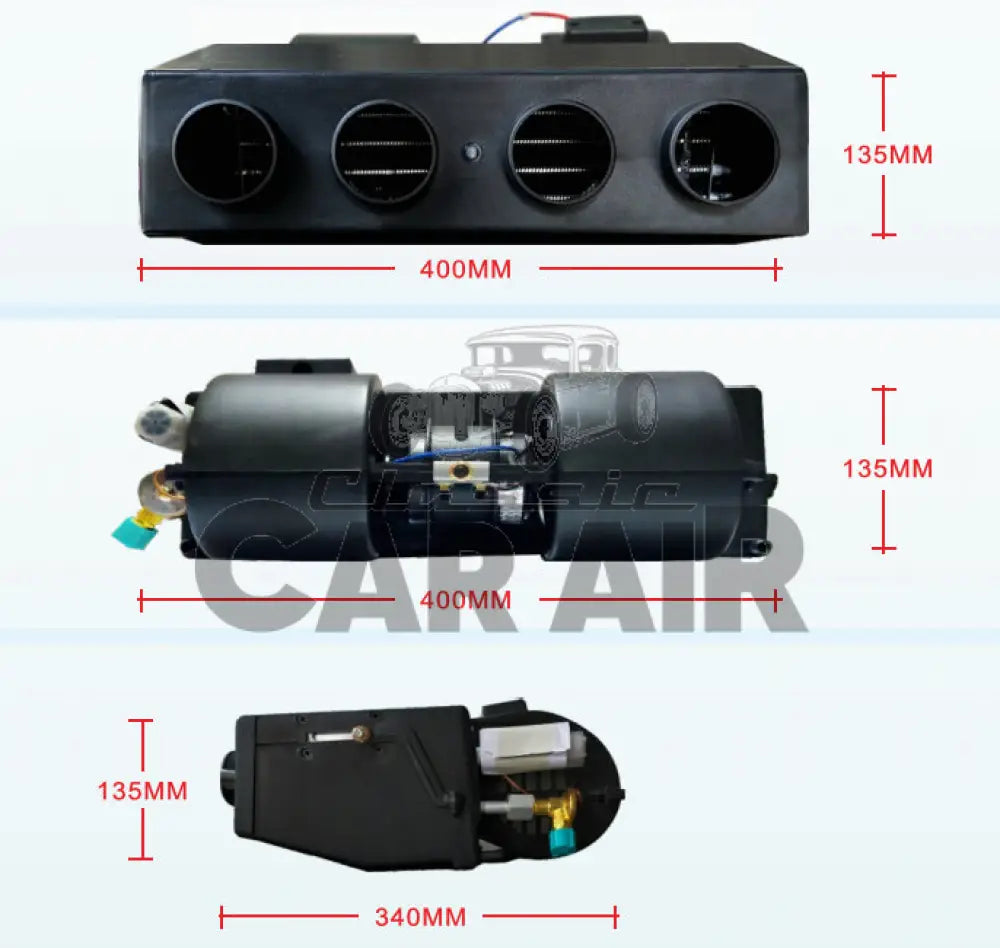

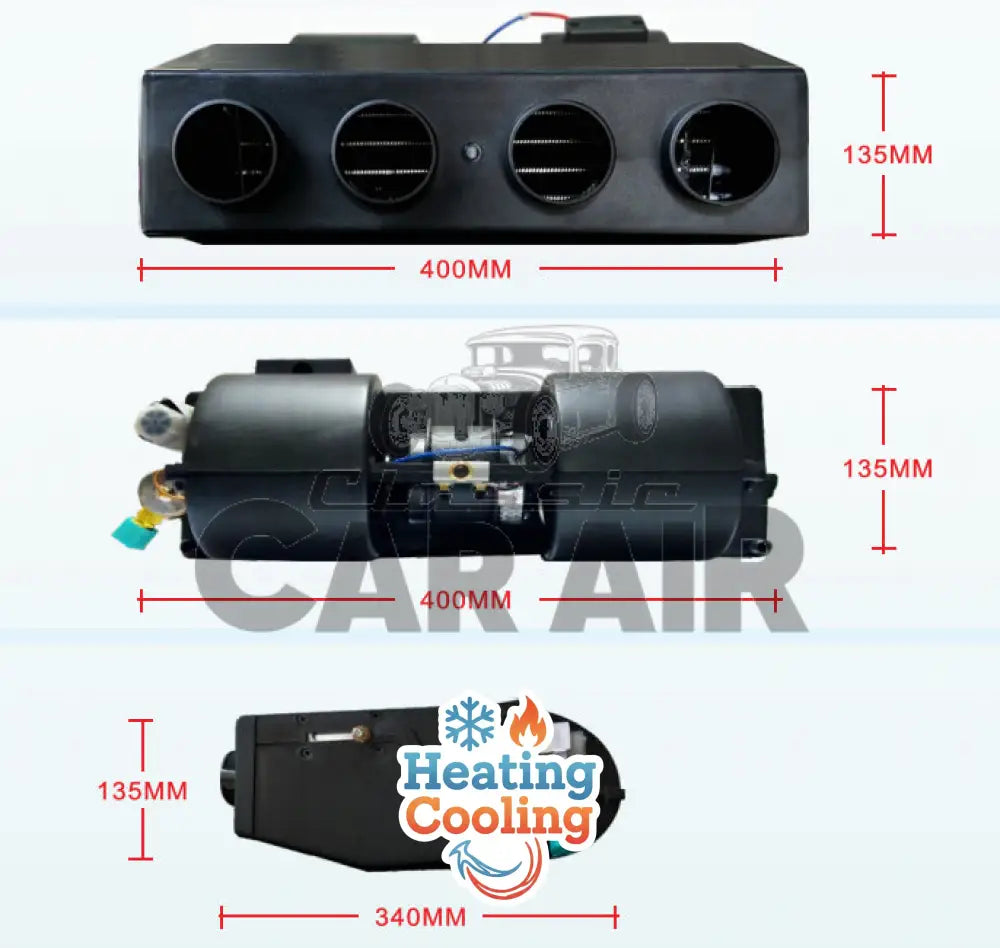

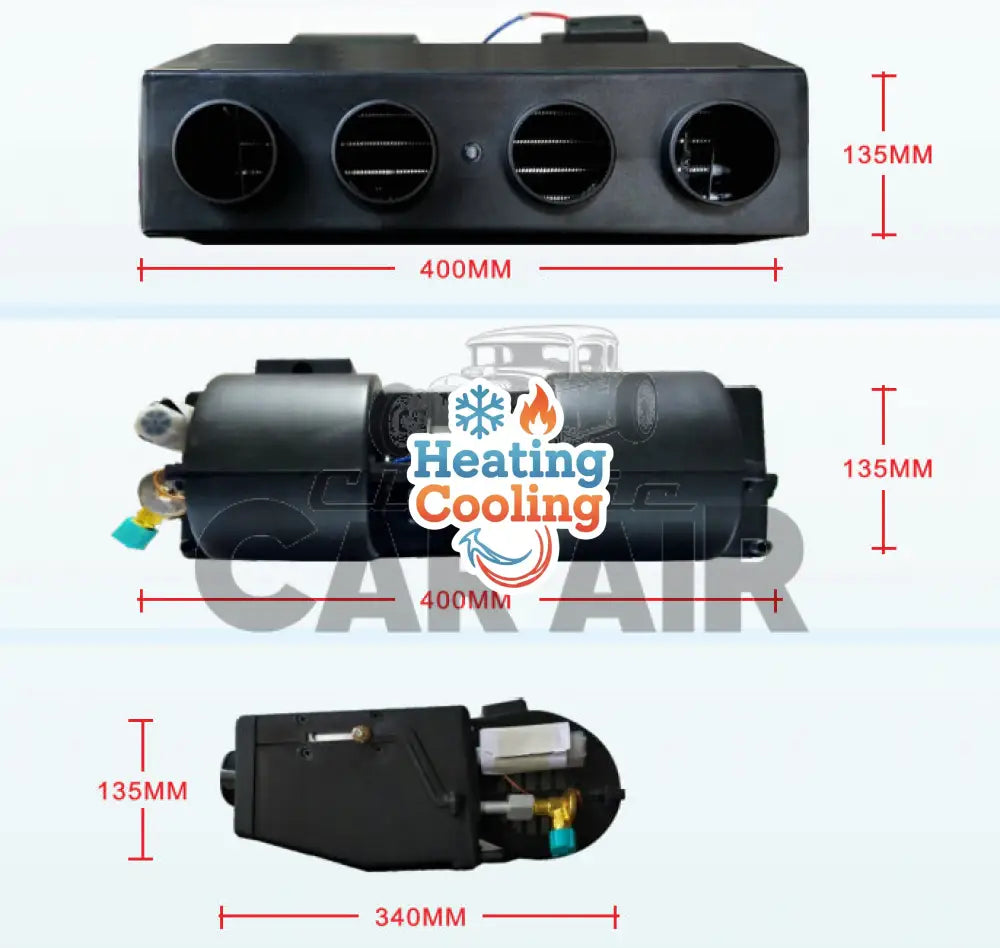

• Our 4 duct 401-4 heater/air-conditioner inside evaporator unit - featuring 4 duct, with thermostat control and 3 speed fan
• Heater core style water heater
• 12-14v electric 20cc compressor with sturdy bracket.
• Parallel flow condenser - known for its high efficiency and compact size
• Condenser fan and shroud
• Pre-terminated cabling
• Receiver dryer with sight glass
• Pressure switch for high powered thermo fan(s)

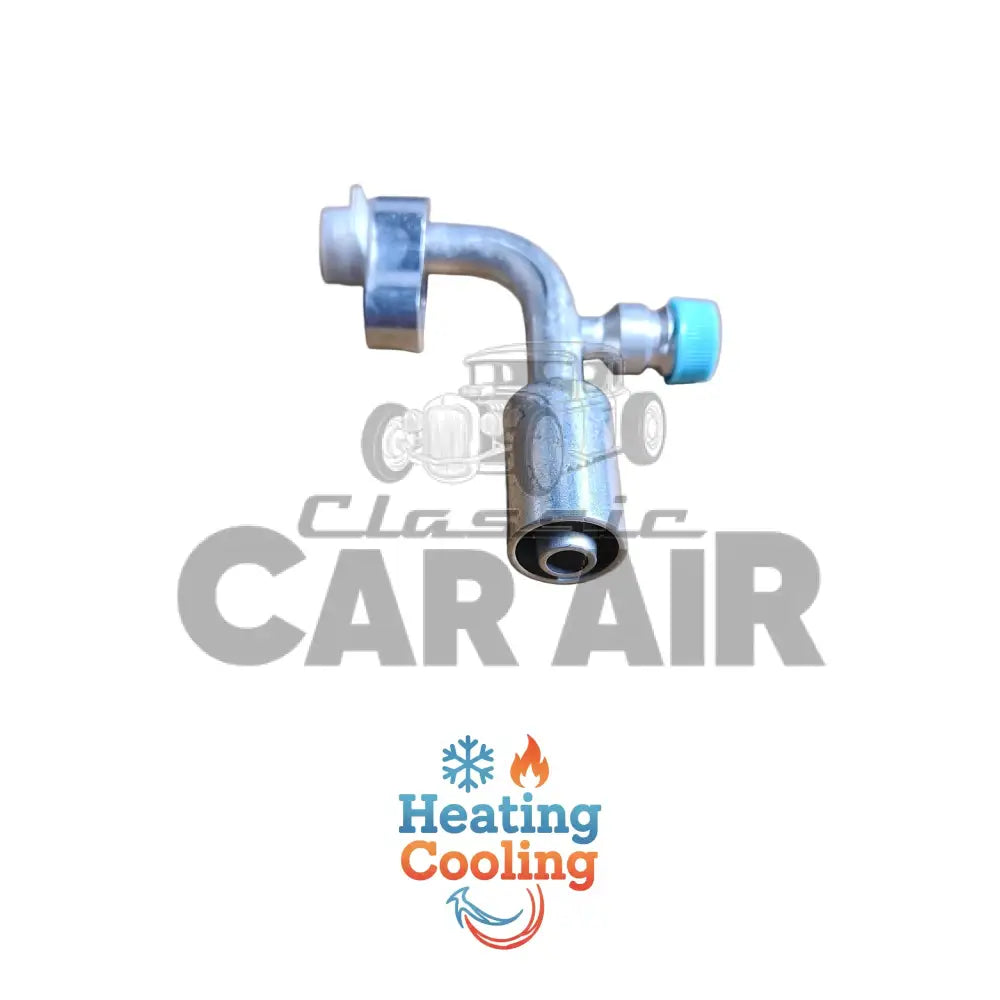

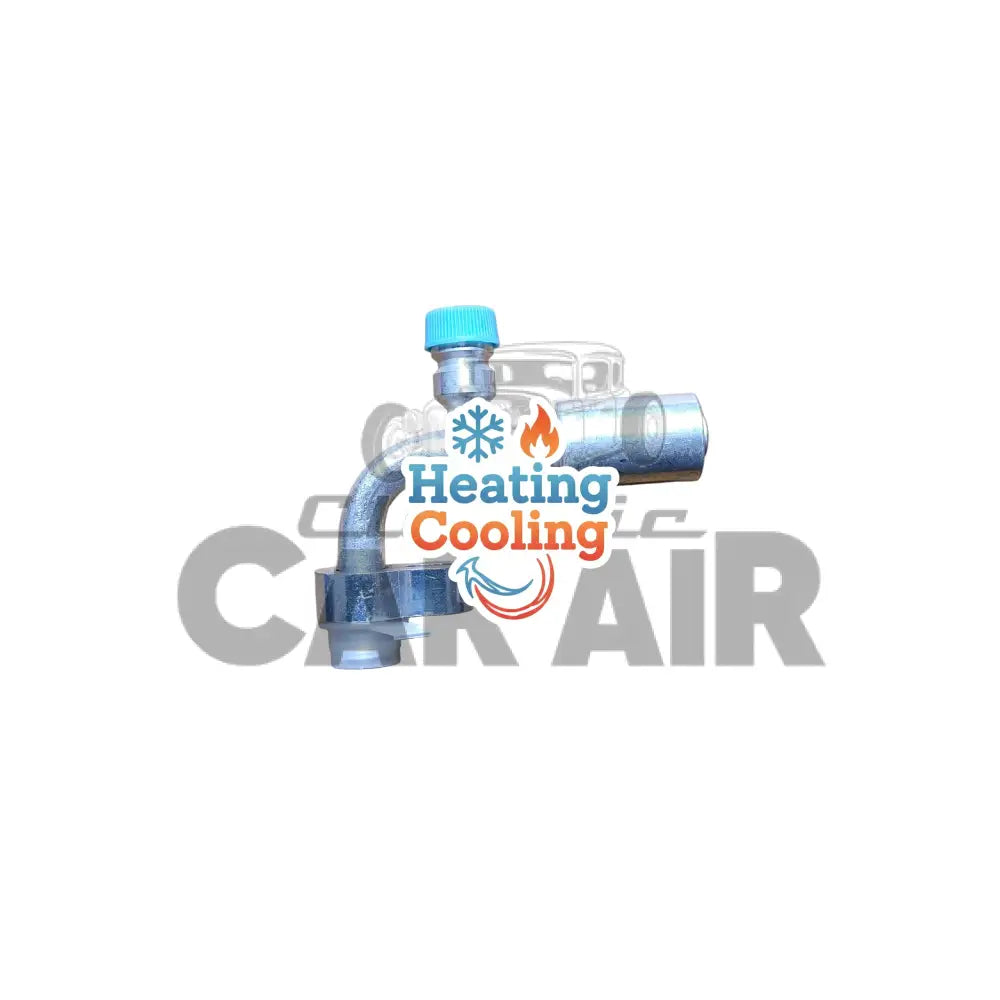

• A range of high quality captured ferrules hose fittings to suit most installations
• Australian standard thin AC hose 3m x no.6 - 2m x no.8 - 2m x no.10 Hose supplied

• 3 speed dual bladed fan
• Enough AC hose for a standard installation
• 1 Box 60x60x40cm weighs 19kg (external parts box with compressor etc)
• 1 Box Evaporator/Heater unit weighs 6kg = total packed weight 25KG

What separates our systems from other systems is a custom main circuit board in our compressors. They don't require a 50watt load resistor to run high current condenser/engine fans. These resistors run hot and waste over 4amps.
Our compressors feature smart logic and have a built-in LED to indicate operating function and display fault codes for easy fault finding.

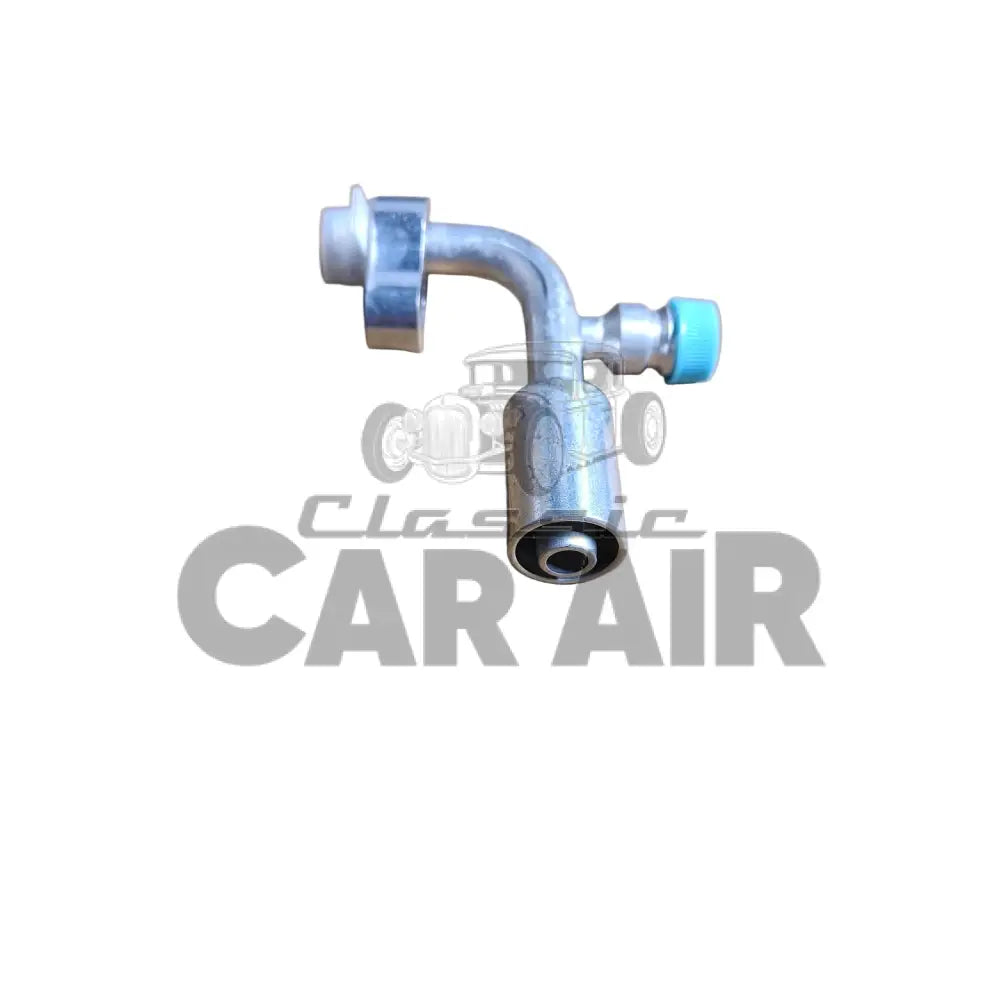

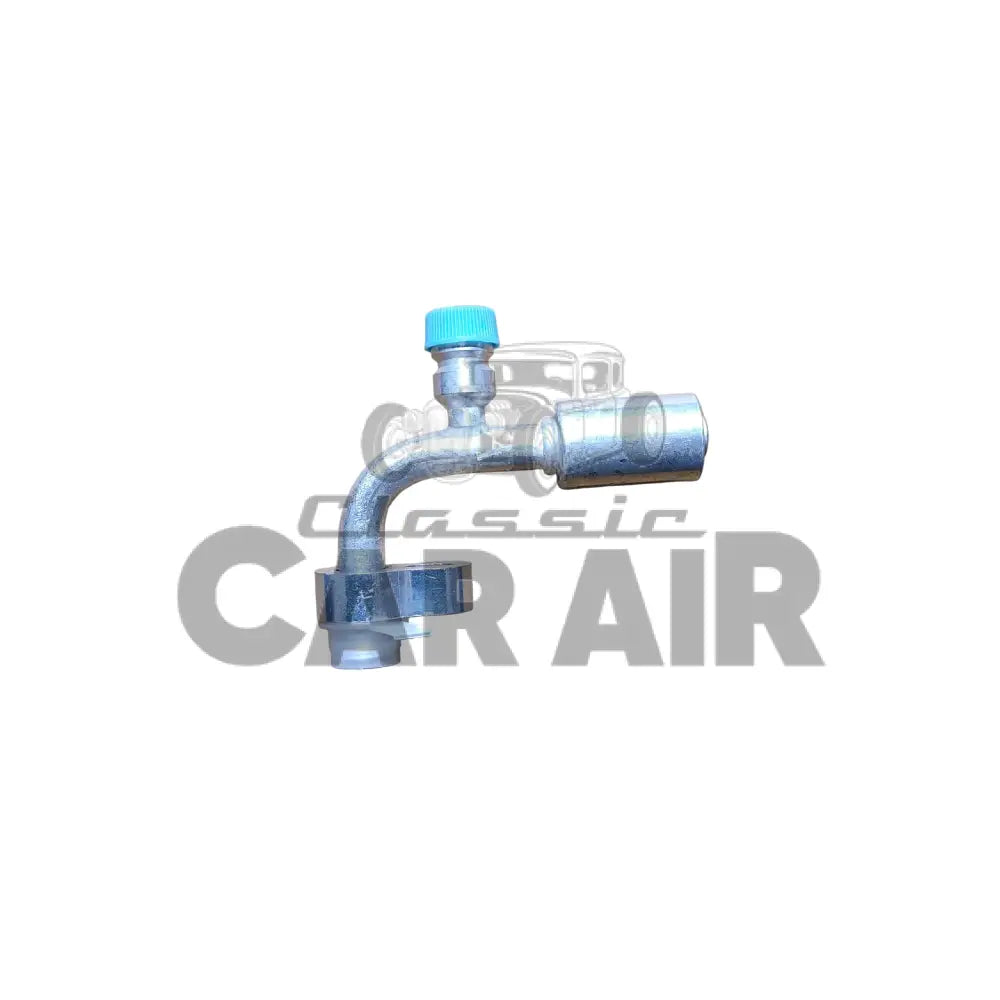

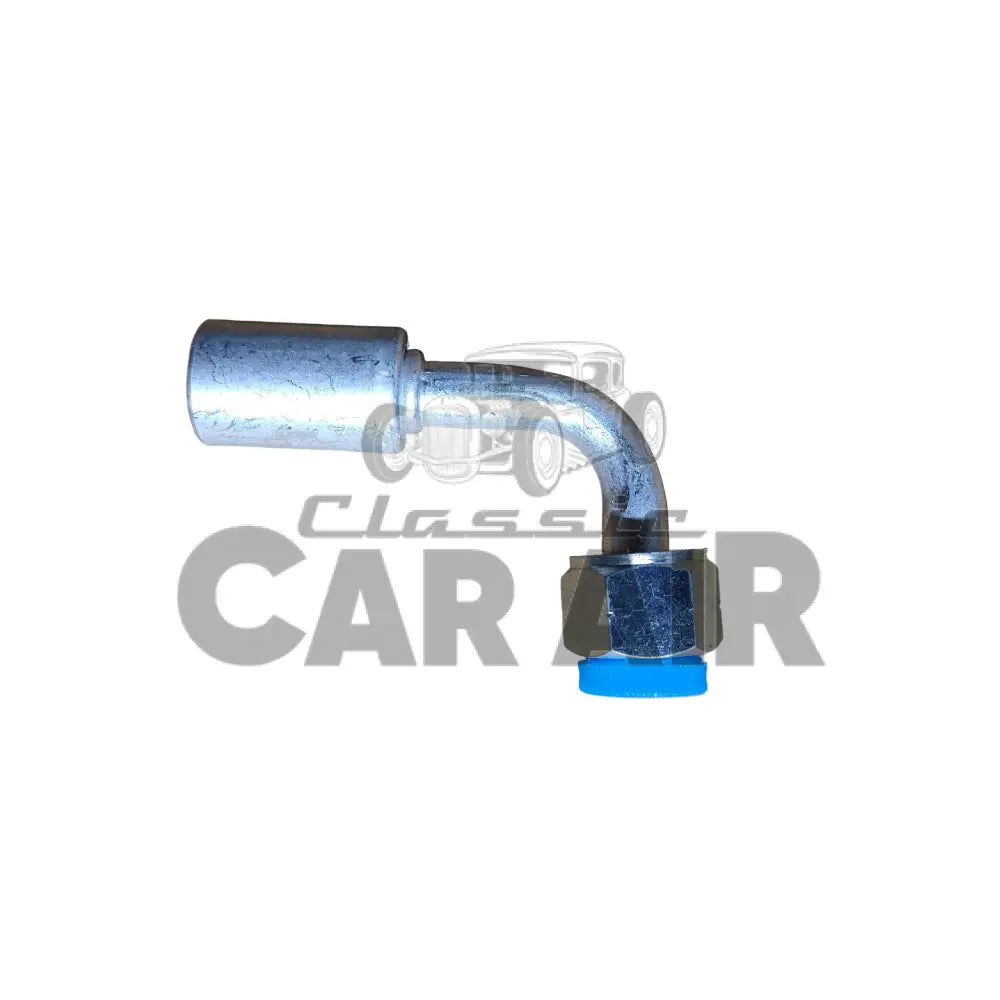

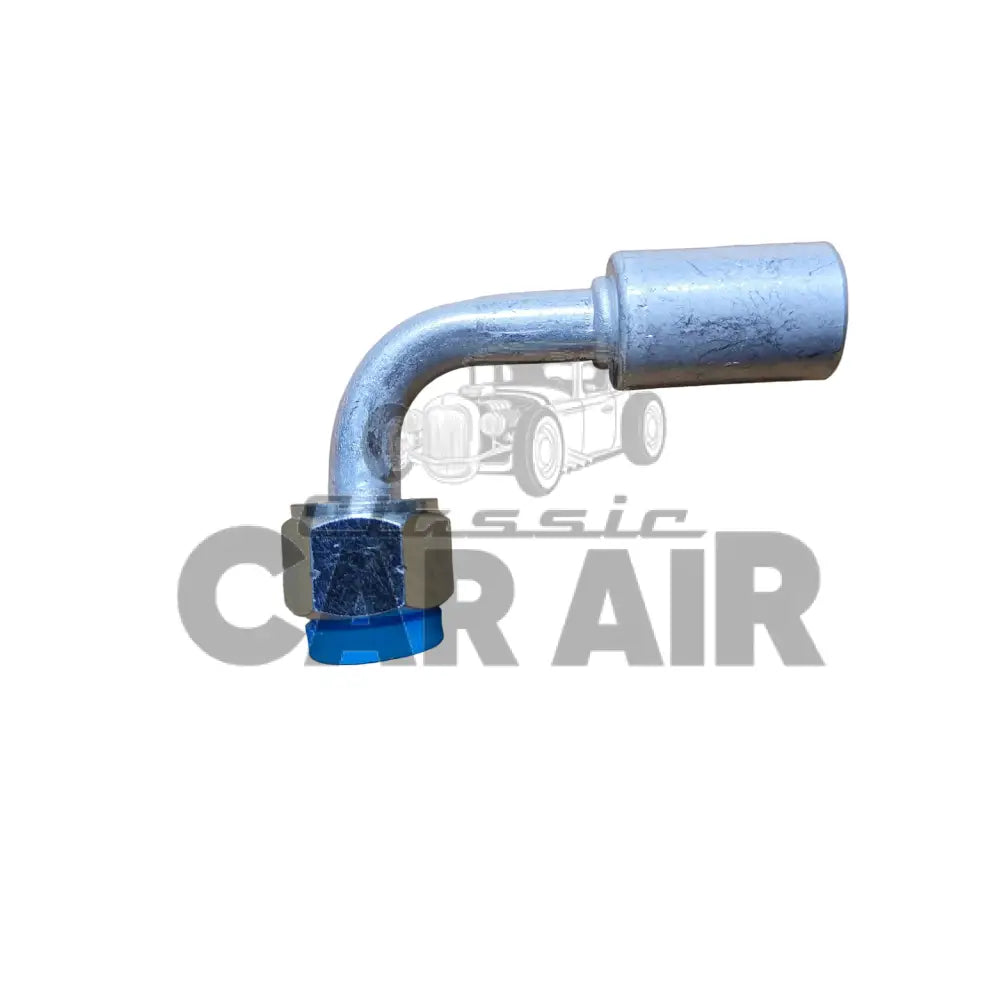

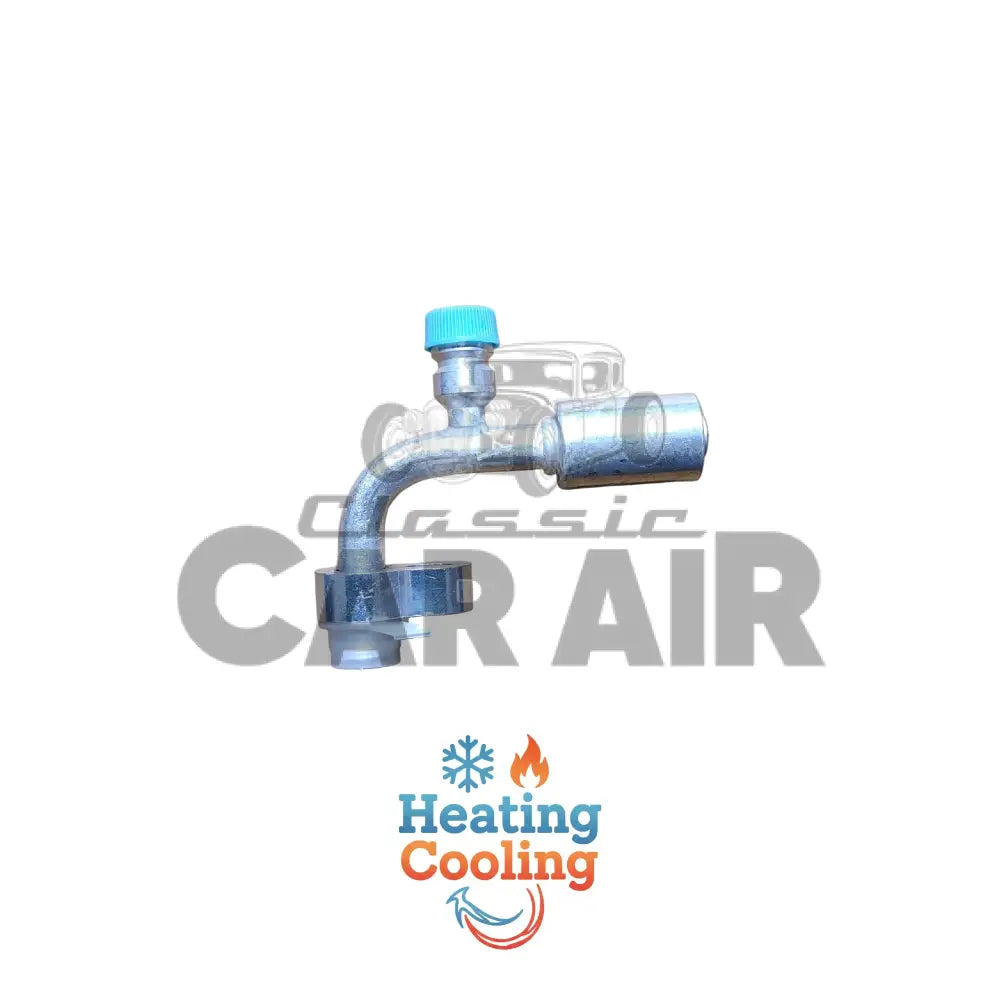

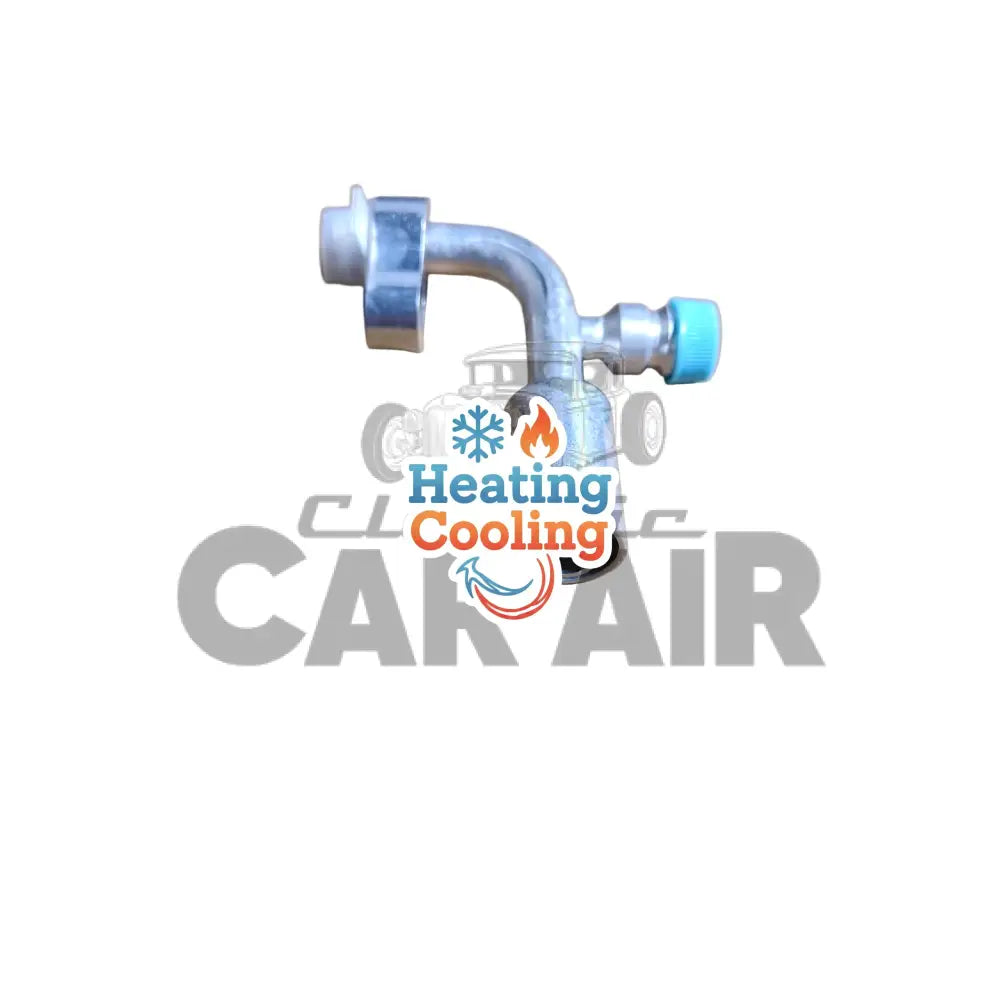

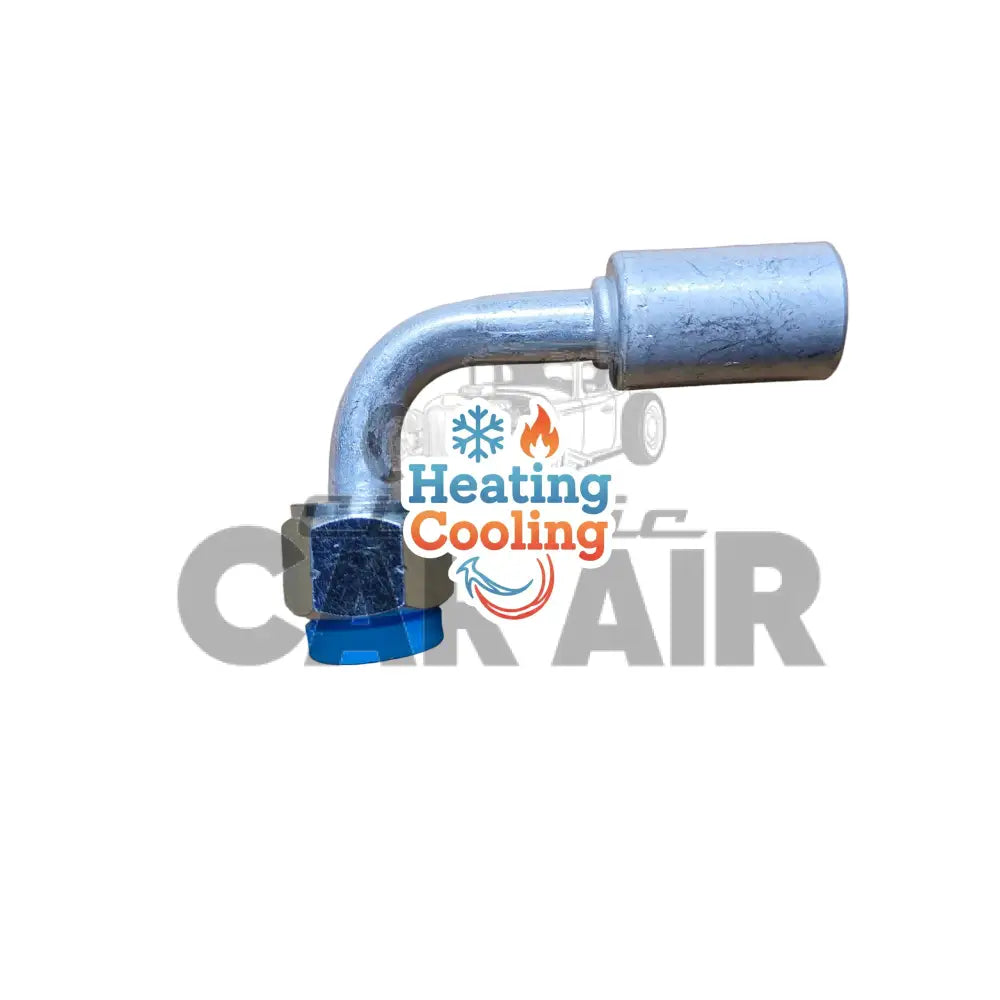

High quality hose fittings that fit common Australian size hoses. These feature captured ferrules and a more aggressive barb - this retains the hose much better than cheaper systems, with much less chance of popping a hose and losing your gas.

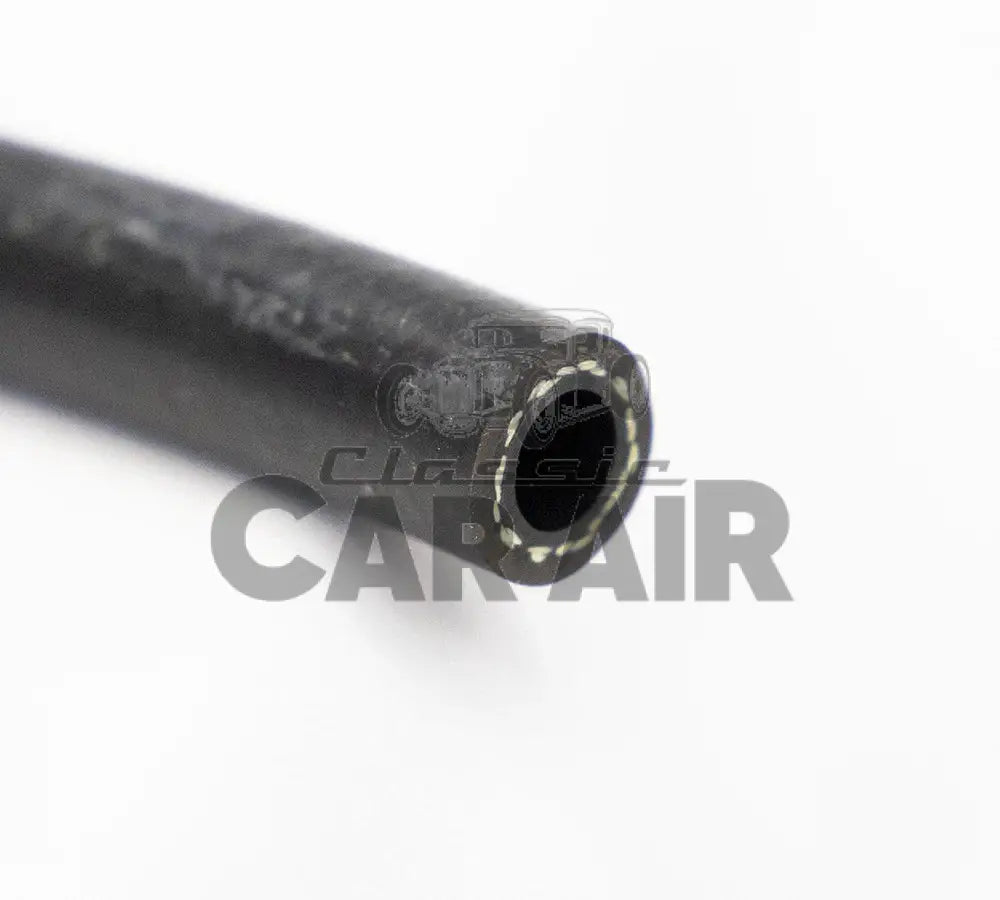

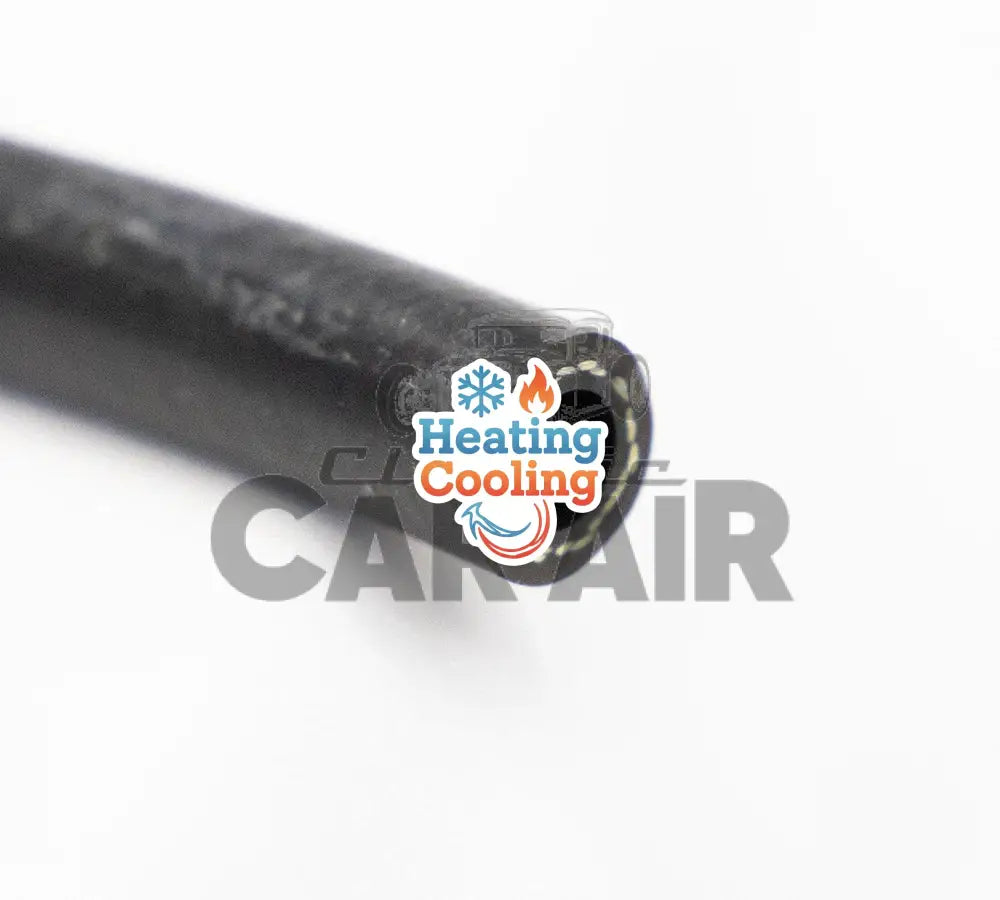

Australian standard hose, that can commonly be purchased from any air conditioning supplier. This hose is smaller in diameter, which is easier to fit in tight spaces

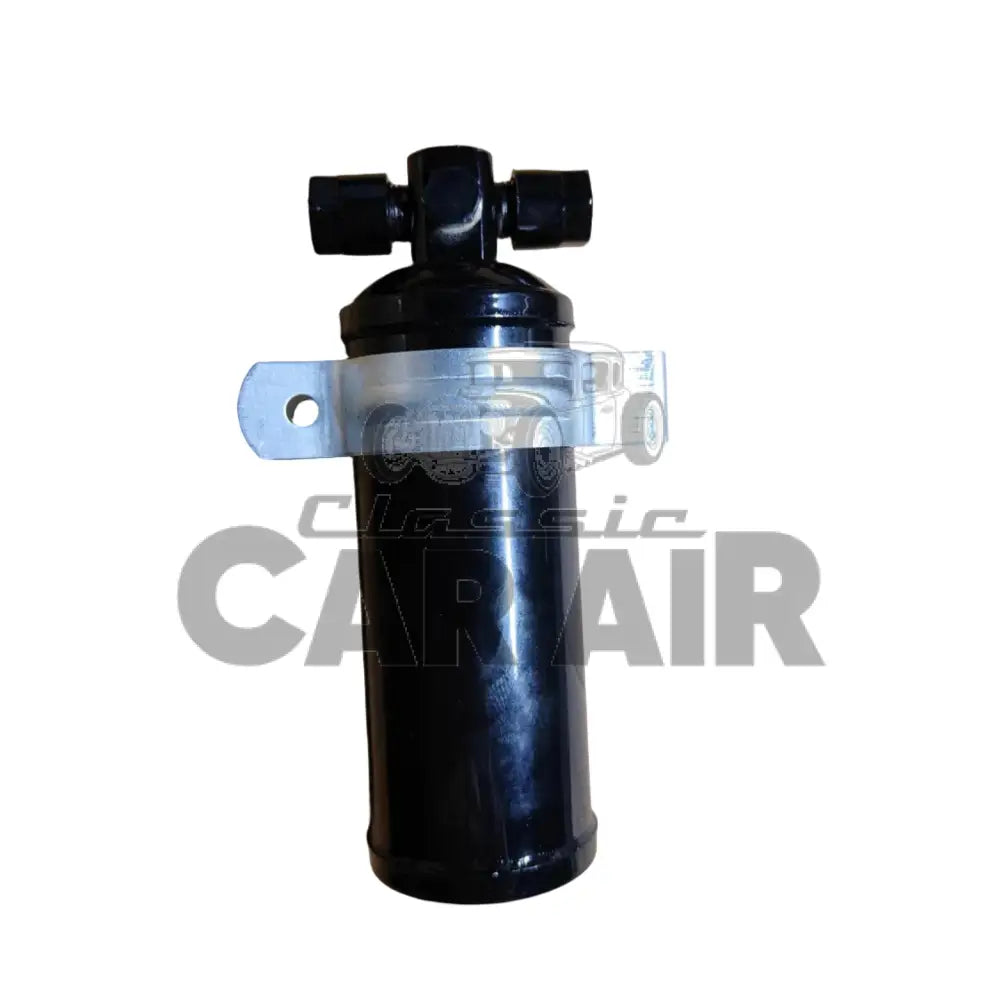

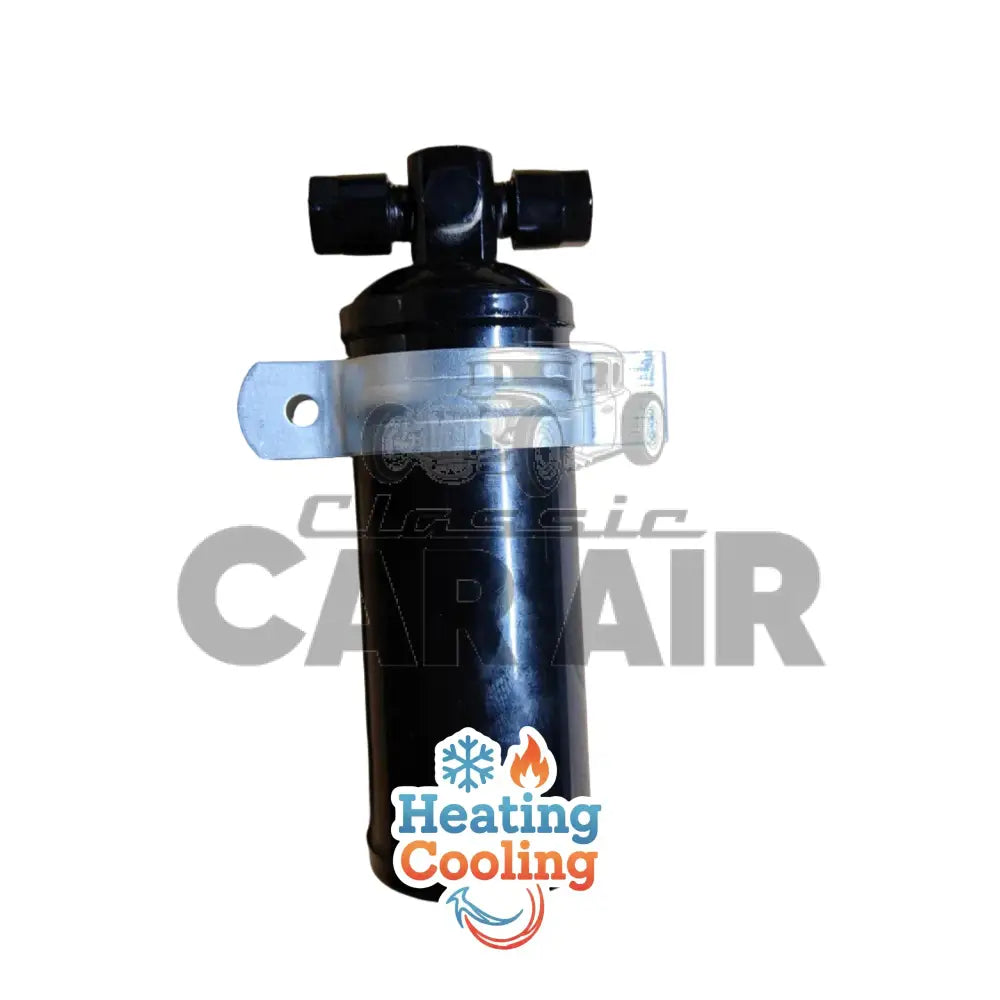

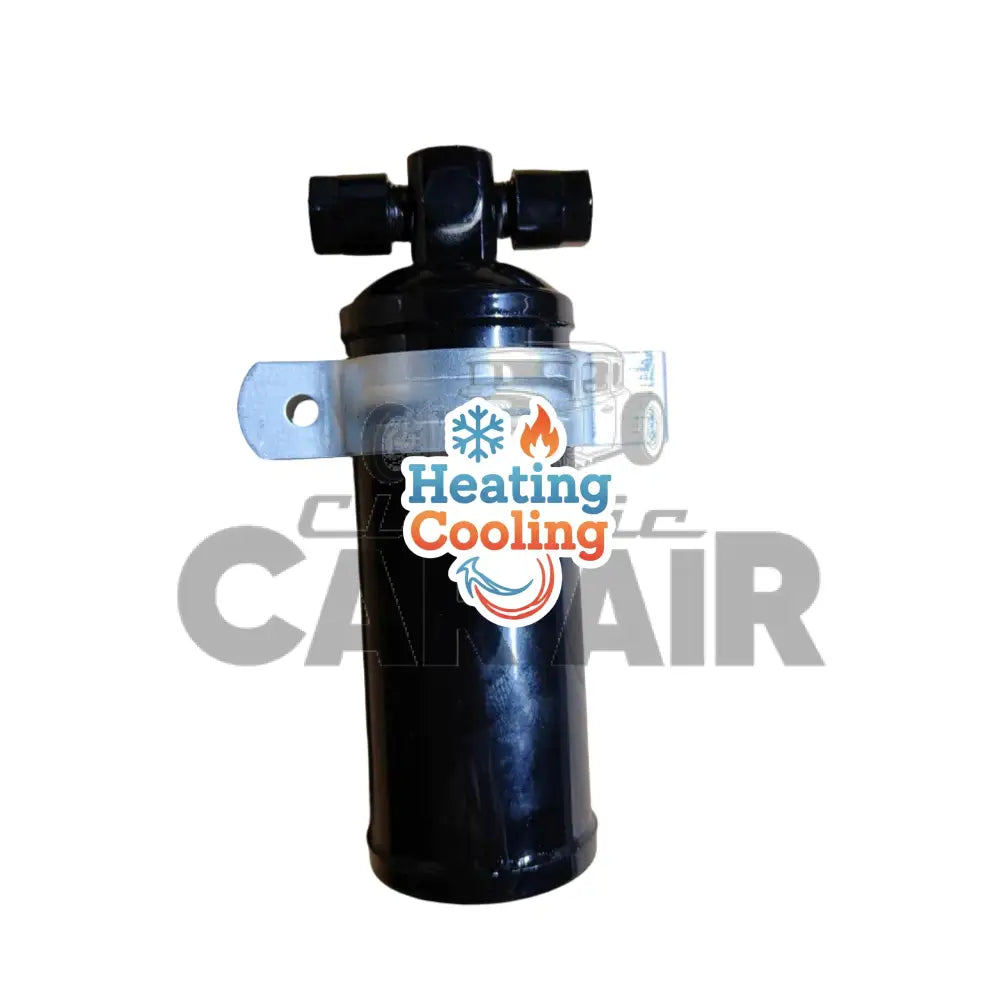

All Classic Car Air kits come with a vertical mounted receiver dryer. Our dryers have a sight glass for easy detection and monitoring of your air conditioning system. Our receiver dryers also feature a pressure switch - that with a relay, can control high current condenser fans, or your electric engine thermo fan, if no space for a condenser fan.
A receiver dryer is required in an air conditioning system to arrest moisture, the leading cause of corrosion in an air conditioning system.

These are not supplied by most other sellers.
