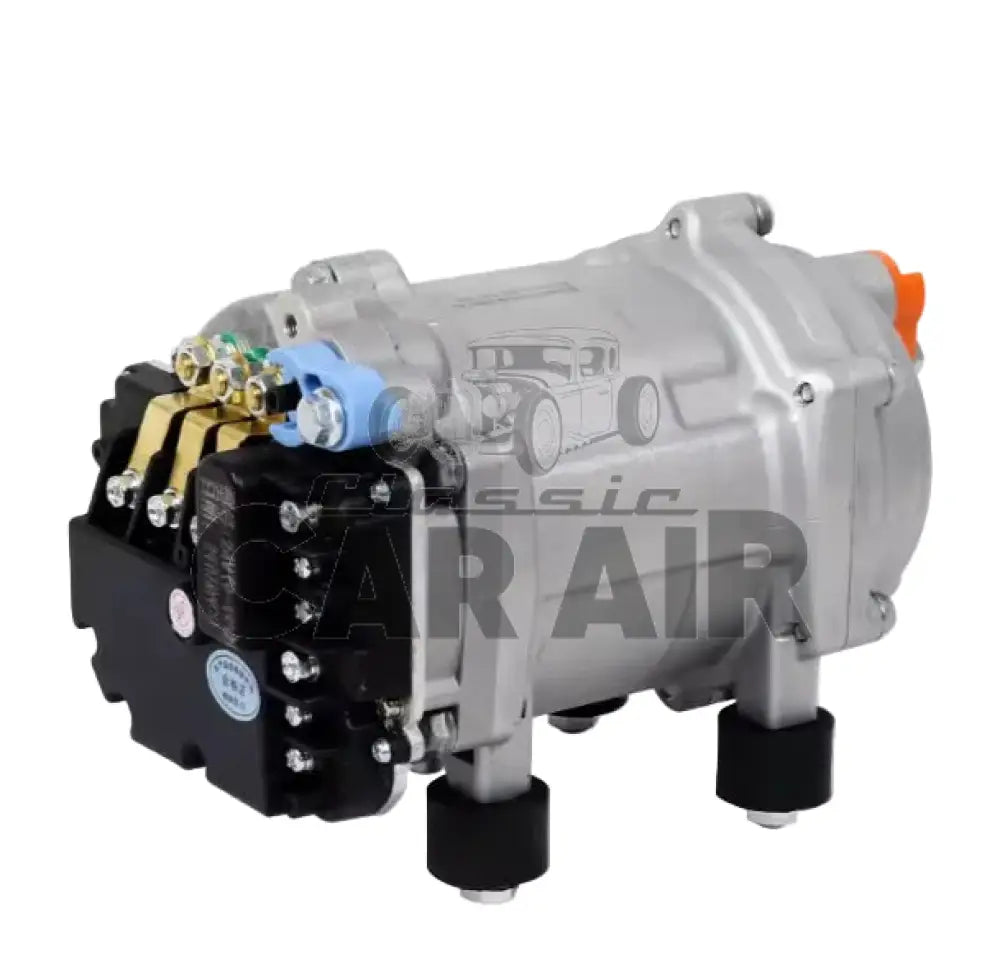

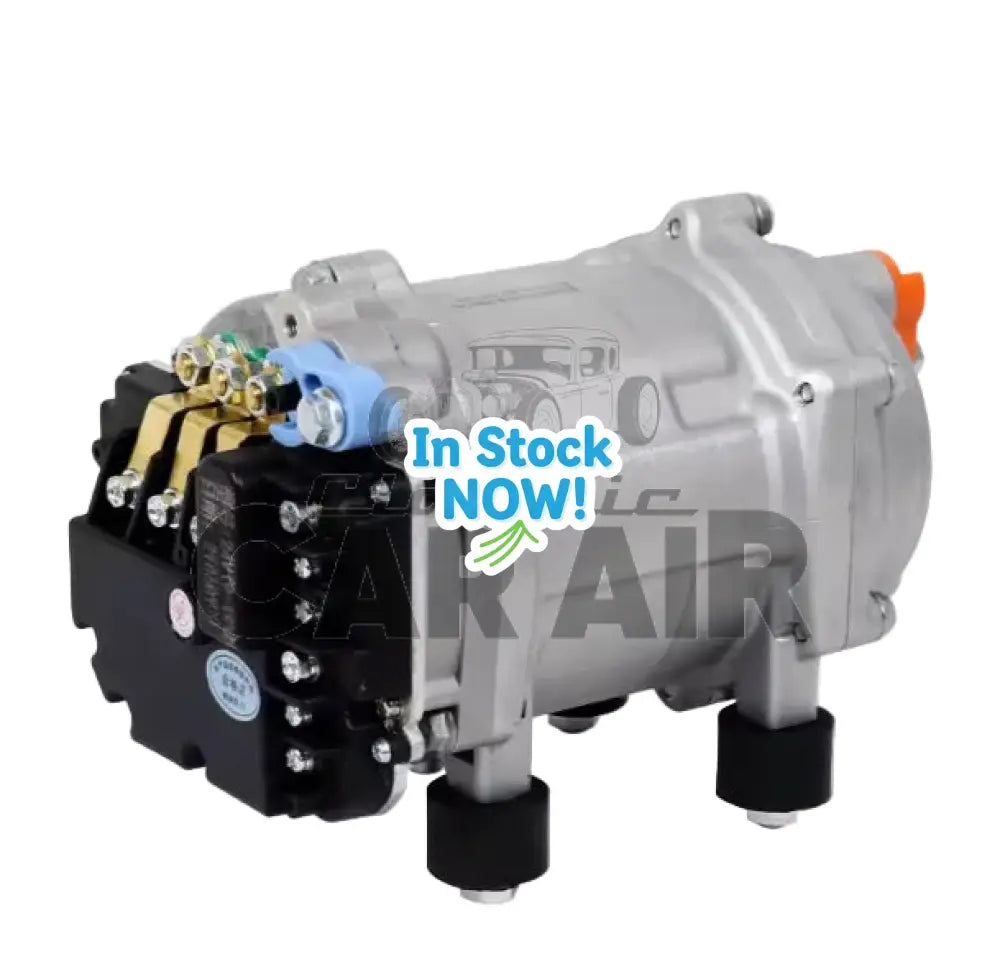

12v Electric Air Conditioning compressors

Classic Car Air's 12v electric air conditioning compressor features an electric DC Scroll Air Compressor. Compatible with multiple vehicle types including trucks, vans, wagons, ute's and sedans.

Features:

• low current draw for its size, average current consumption is only 43amps
• corrosion-resistant durable steel construction, high-efficiency flow design, and universal installation for aftermarket replacement and installation.
• custom main circuit board does not require a 50watt load resistor to run high current condenser/engine fans. This unneeded resistor run hot and waste over 4amps.
• smart logic and have a built-in LED to indicate operating function and display fault codes for easy fault finding.
• Measuring just 22cm long 16cm tall and 12.5cm deep, our electric air-conditioning compressors are easily mounted in tight locations (under guard, in the boot, in the engine bay etc)

These are a direct replacement for our EJ EH Holden factory style air conditioning system compressors.

Our electric AC compressors include
☆Electric AC Compressor
☆Compressor Bracket
☆1.8m 6 BNS Compressor power cable and fuse
☆Mounting hardware
☆Screw type O ring fittings (crimped pad mounts also available in store)
☆Compressor start connector
☆Instructions

NOTE: DO NOT USE A MECHANICAL COMPRESSOR PRESSURE SWITCH WITH THIS UNIT - IT WILL CAUSE DAMAGE TO THE UNIT

Only electric compressor type pressure switch should be used.
They are available here: https://www.classiccarair.com.au/products/pressure-switches

Pressure switch compatible receiver drier here: https://www.classiccarair.com.au/products/receiver-dryer-kit515d

Cubic capacity                                                                           20cc

12 Month Warranty

Parameter Name Description
Current (A) Max 52
Power (W) Max 1200
Input voltage (V) DC 12-14
Input current (A)    ＜52
Upconversion rate (Hz/s) 1
Speed range (rpm) 1200-3000rpm
Starting operation mode: square wave starting
Linear variation of acceleration and deceleration modes
Shutdown mode: Free shutdown
Cooling method: compressor return air cooling
Noise (dB (A)) ≤ 40
Rated continuous operation time (h)>40000
Working temperature (℃) -20~65
Storage temperature (℃) -40~80
Working humidity (%)<95
Storage humidity (%)<95
Insulation resistance (M Ω)>20
Voltage endurance V 500 (60s)
Insulation resistance (M Ω)>20 (500V)
Voltage endurance V AC500 (60s)/AC600 (1s) (≤ 5mA)
Shell protection level IP65
Speed regulation method simulates voltage speed regulation

Simulate voltage value,8.7V-18.7V
compressor speed (RPM)：above 1200-3000

Protection mode: 53A speed reduction, current rises to 58A, compressor shuts down, indicator light flashes 2 times, fan does not stop, compressor restarts after 1 minute.
