6 Duct Heating & 12v Electric Air Conditioner 401-6 Kit UPGRADED

Classic Car Air 6 duct under dash heating and electric air conditioner kit with thermostat control.
Made to retro-fit into most 12v ground cars, panel van's, wagons and utes, mini vans.
Connect the ducts up to the original heater, demister or any fitted or custom vents.

Included parts:

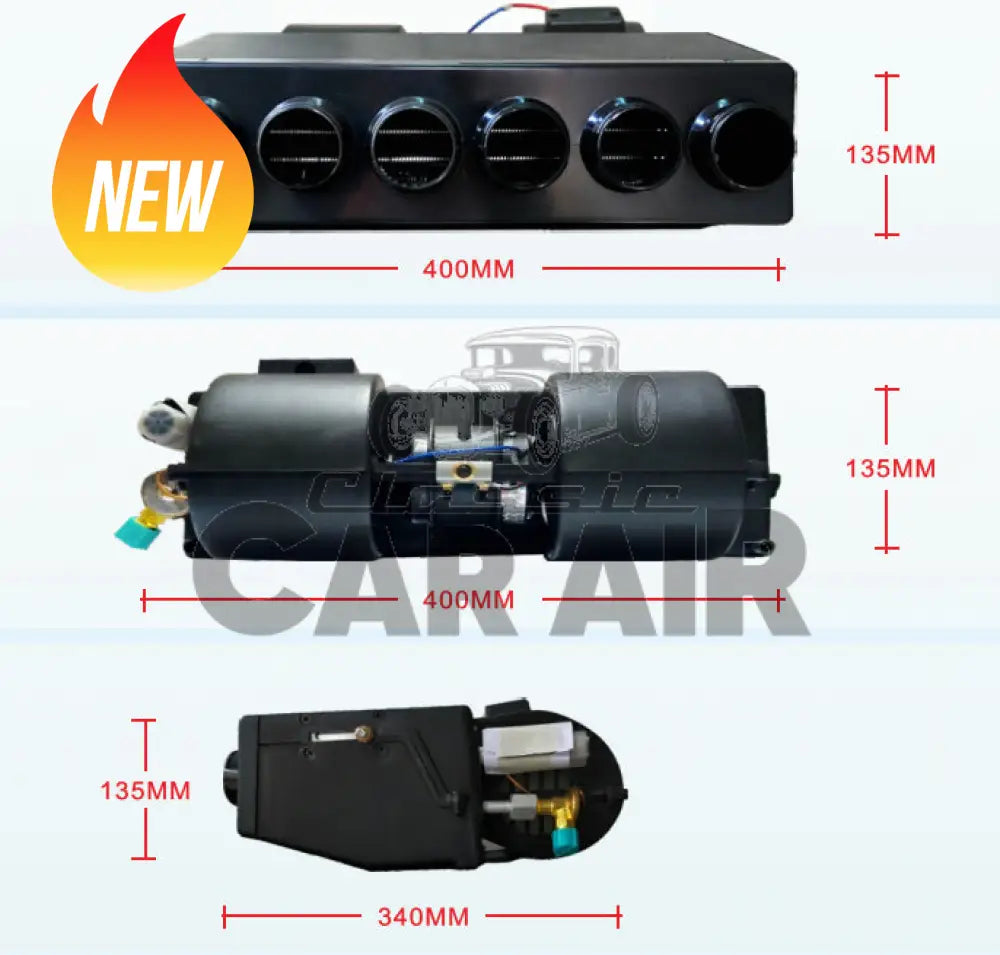

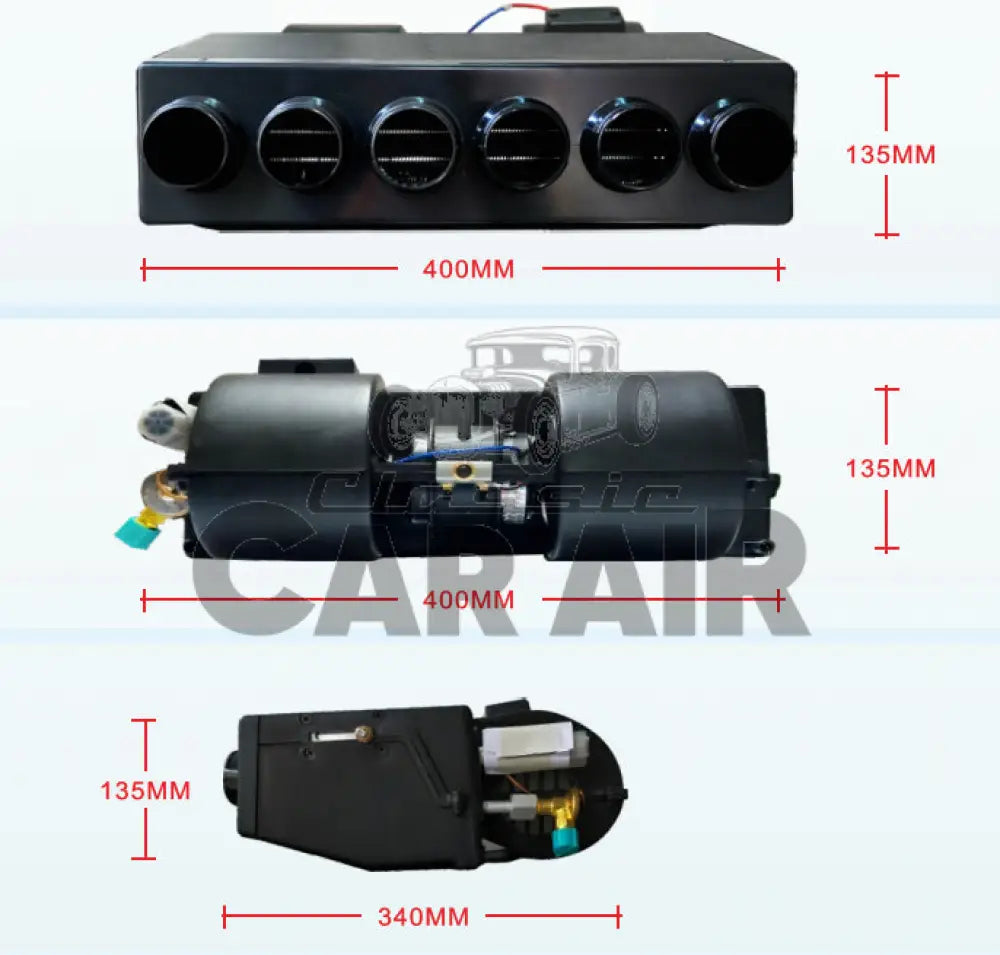

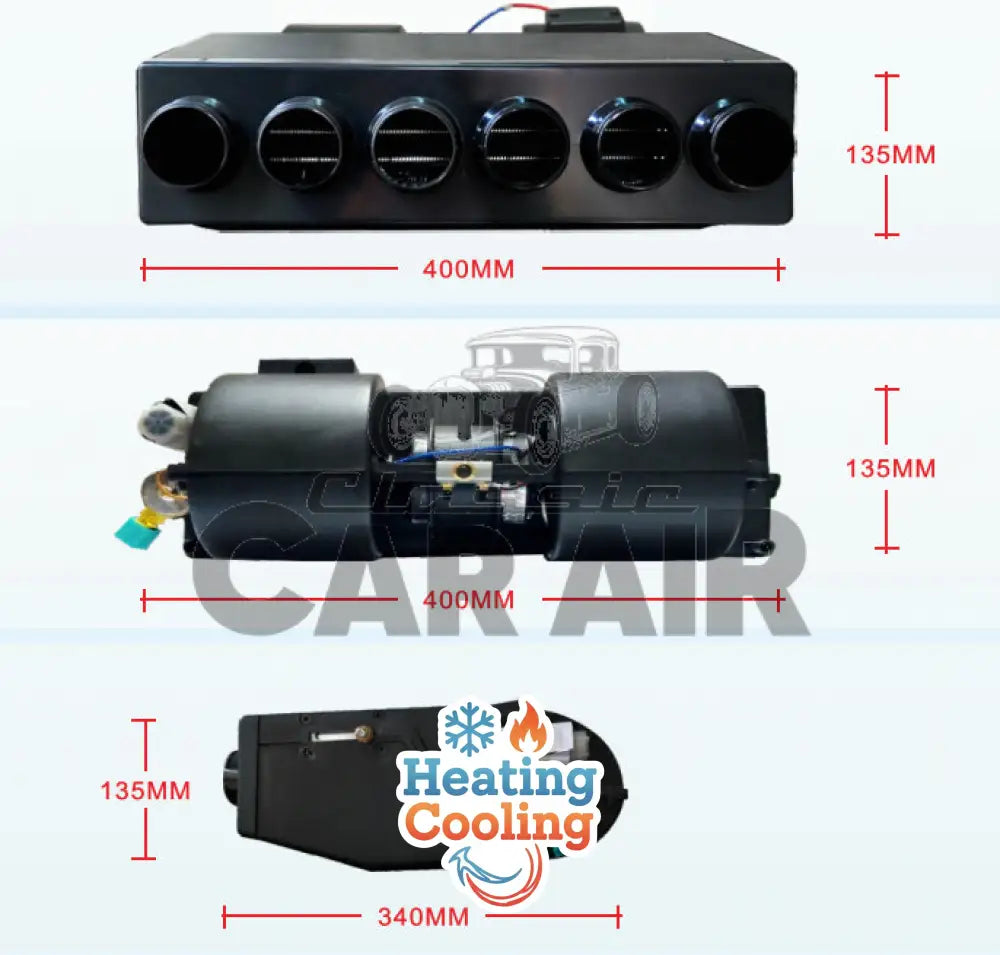

• Our 6 duct 401-6 heater/air-conditioner inside evaporator unit - featuring 6 duct, with thermostat and 3 speed fan controls.
• Heater core style water heater

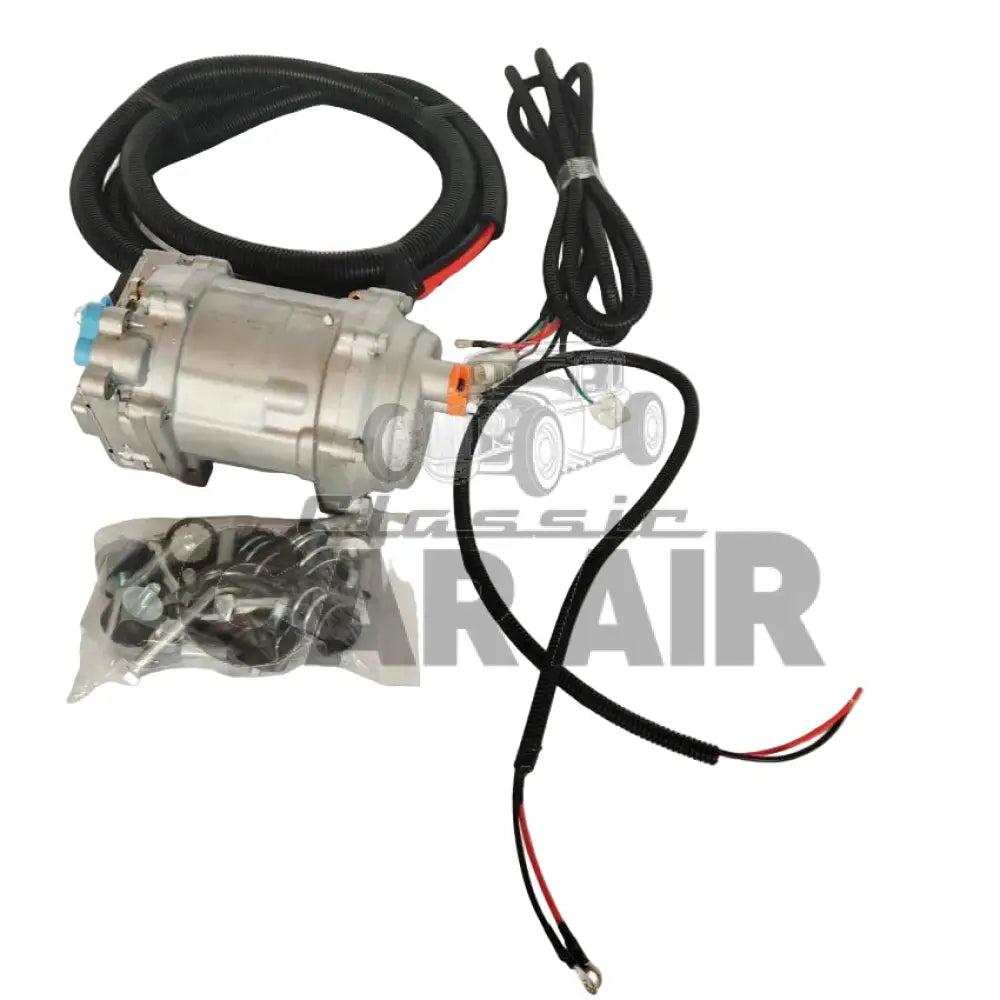

• 12-14v electric 20cc compressor with sturdy bracket.

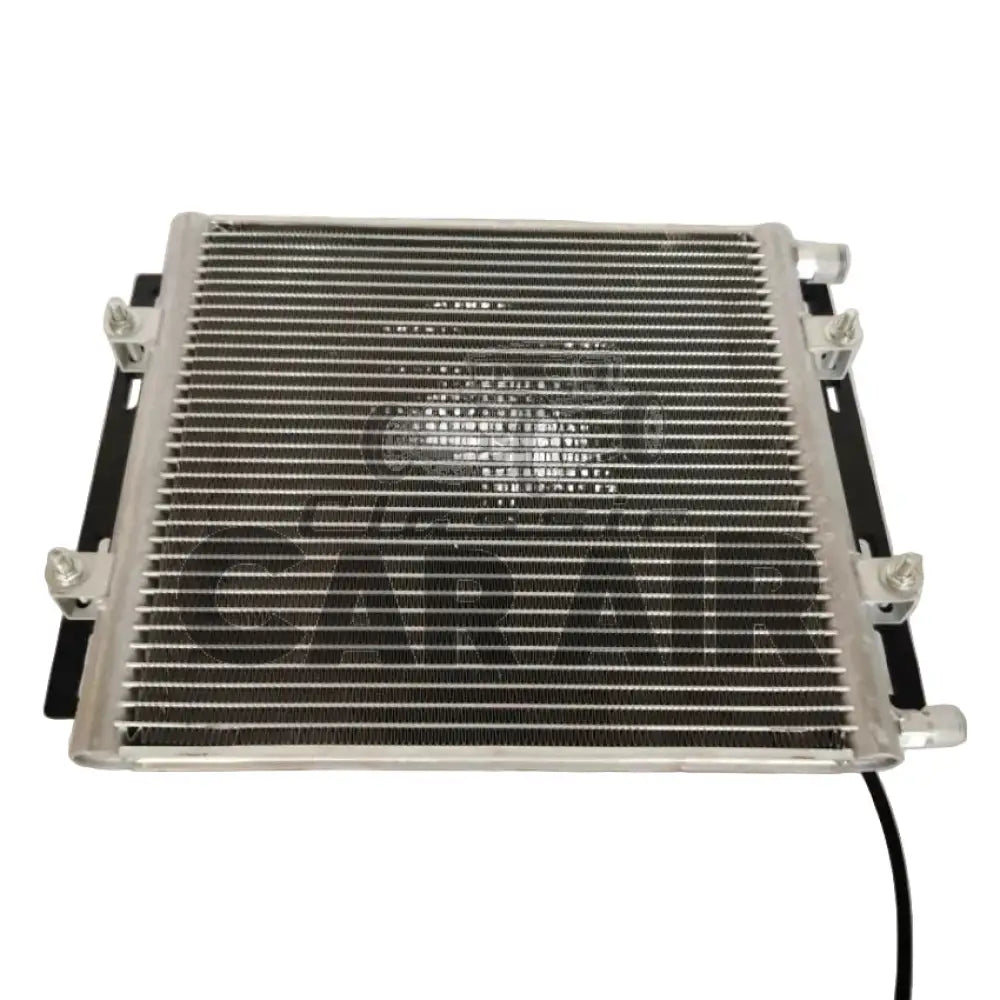

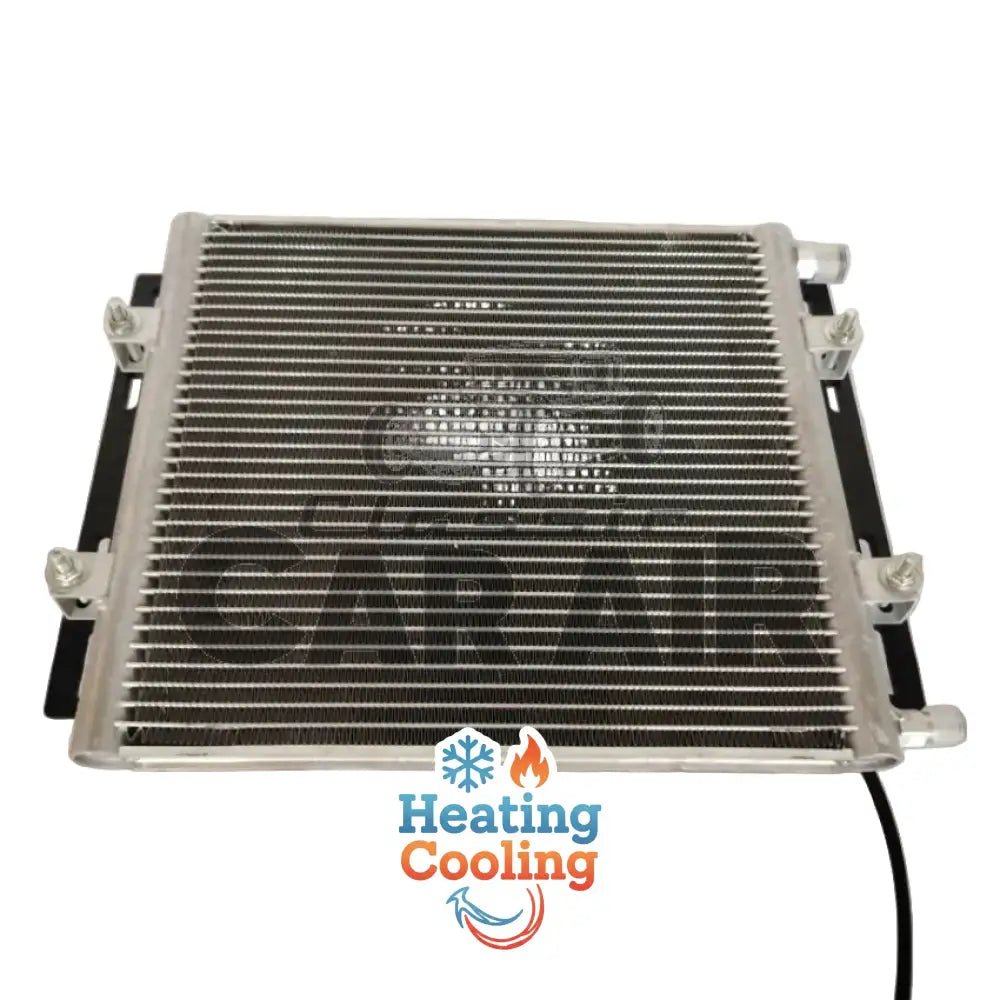

• Parallel flow condenser - known for its high efficiency and compact size
• Choice of 80 watt fan with shroud + pushing and pulling blades or high powered150 watt pushing fan without shroud
• Pre-terminated cabling
• Receiver dryer with sight glass
• Pressure switch for high powered thermo fan(s)
• A range of high quality captured ferrules hose fittings to suit most installations

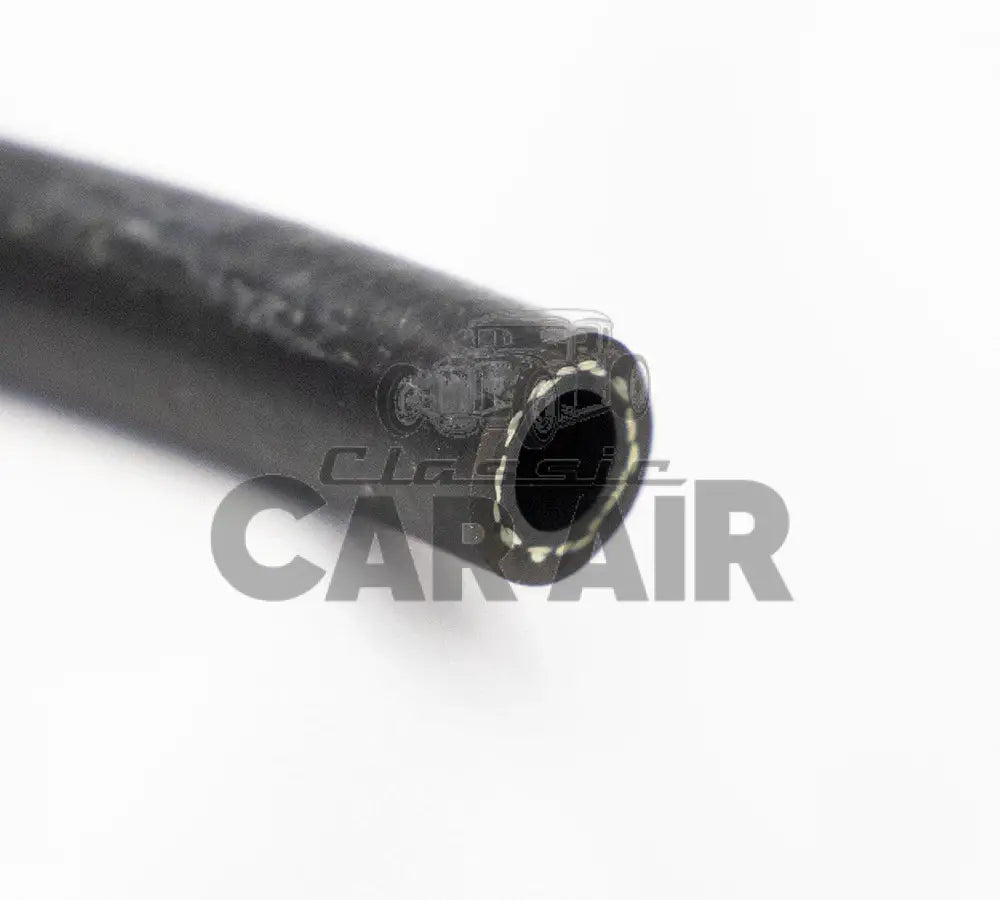

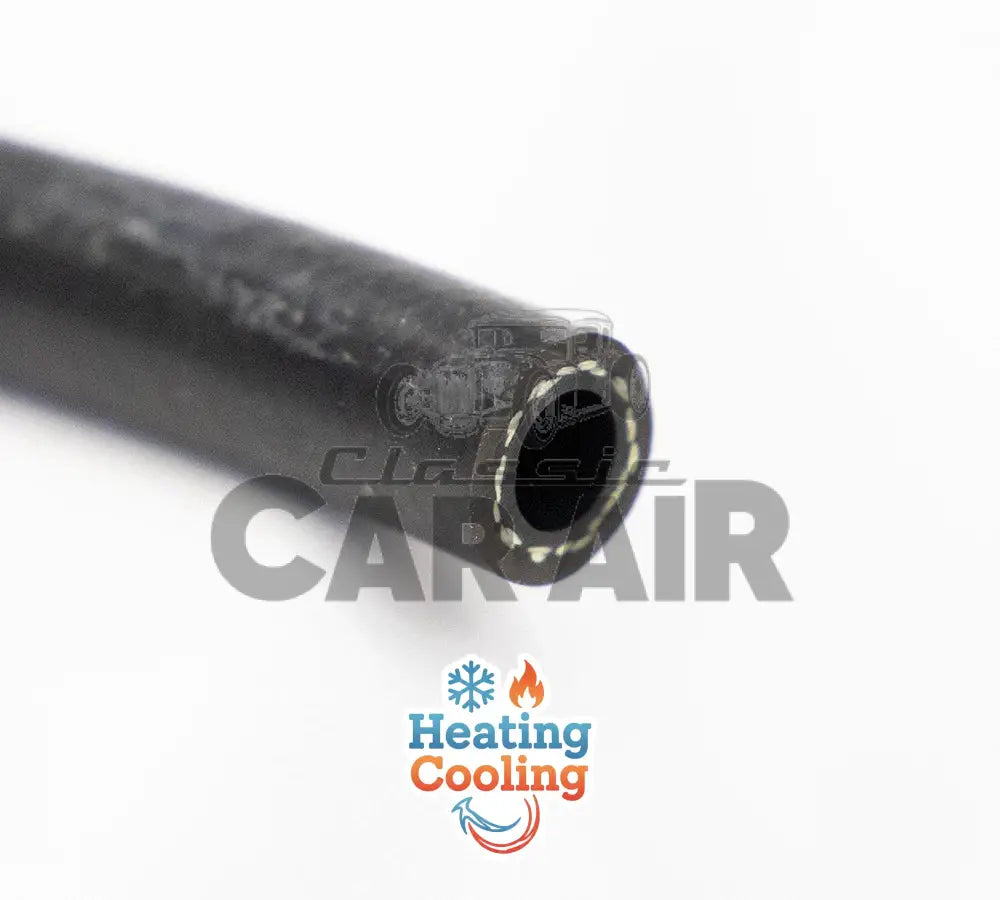

• Reduced barrier AC hose 3m x no.6 - 2m x no.8 - 2m x no.10 Hose supplied

• 3 speed dual bladed fan
• 1 Box 60x60x40cm weighs 19kg (external parts box with compressor etc)
• 1 Box Evaporator/Heater unit weighs 6kg = total packed weight 25KG

What separates our systems from other systems is a custom main circuit board in our compressors. They don't require a 50watt load resistor to run high current condenser/engine fans. These resistors run hot and waste over 4amps.
Our compressors feature smart logic and have a built-in LED to indicate operating function and display fault codes for easy fault finding.

High quality hose and connections that feature captured ferrules and an aggressive barb - this retains the hose much better than cheaper systems, with much less chance of popping a hose and losing your gas.

Reduced barrier hose is easier to fit in tight spaces and looks neater.

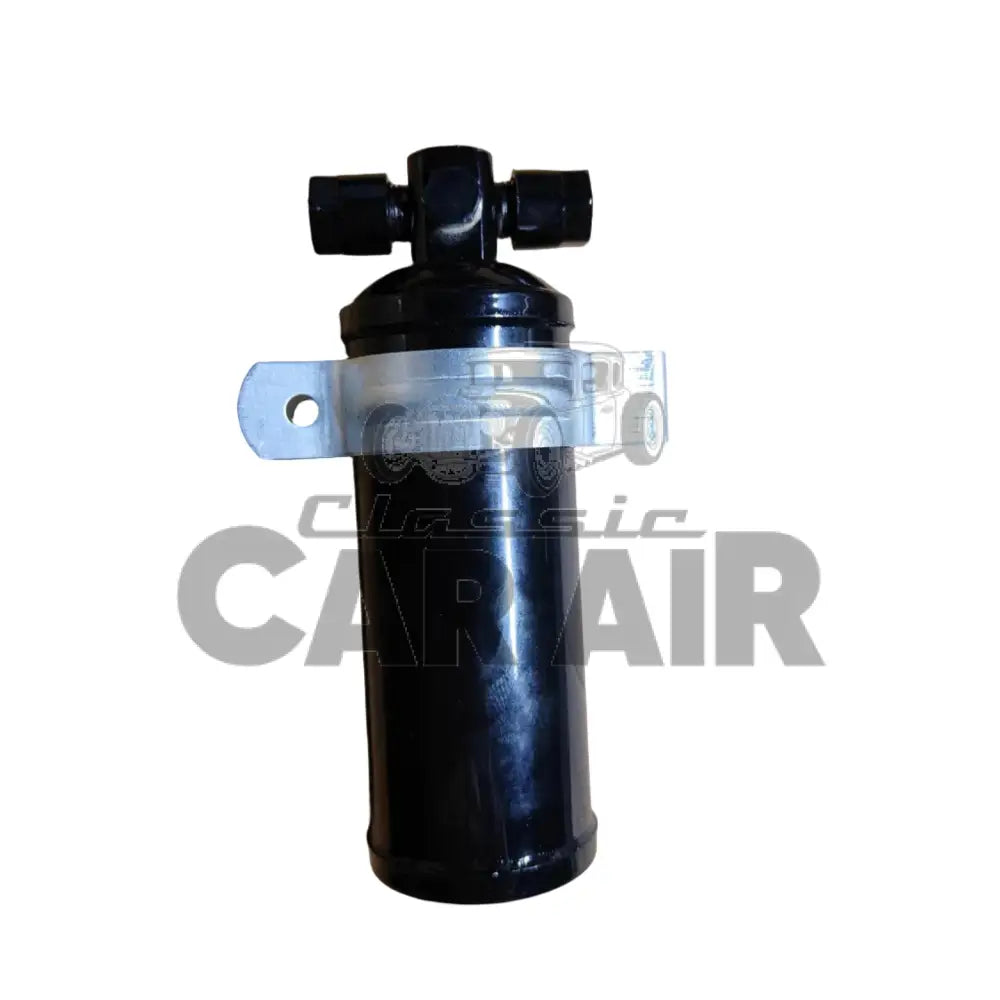

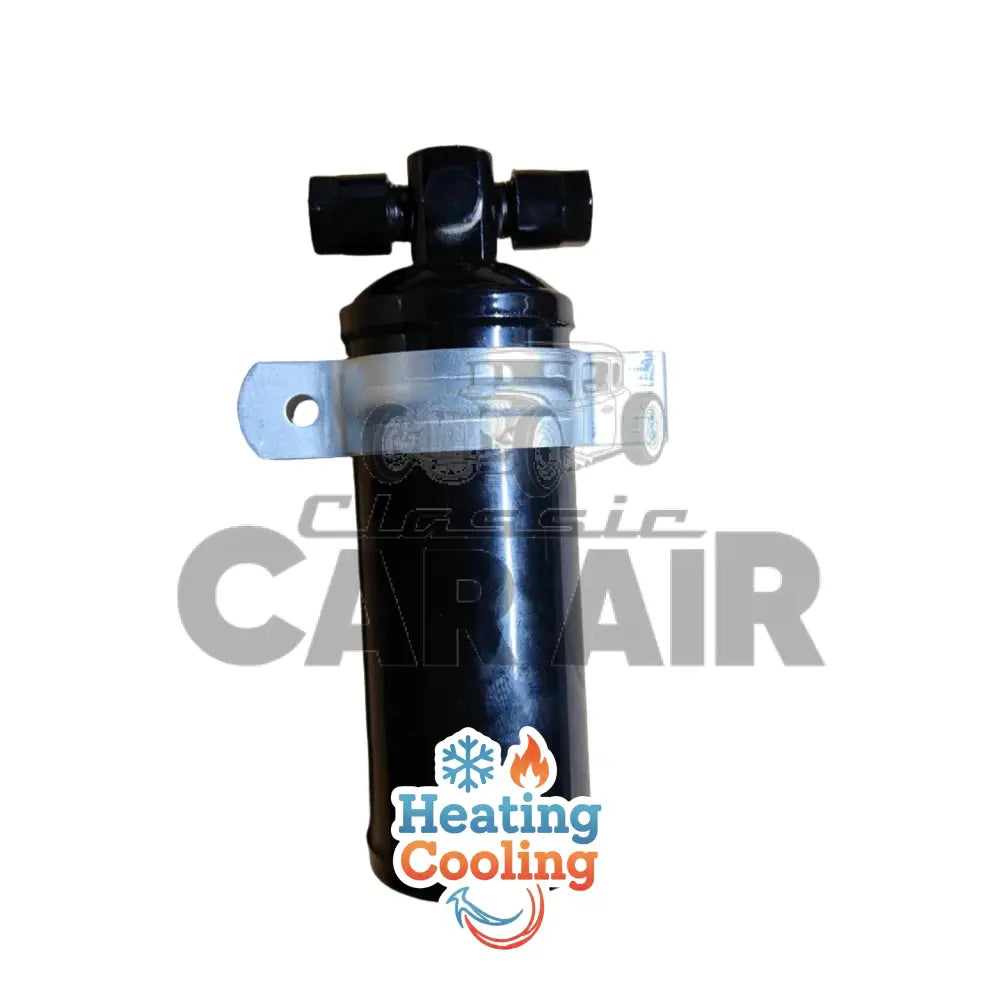

All Classic Car Air kits come with a vertical mounted receiver dryer. Our dryers have a sight glass for easy detection and monitoring of your air conditioning system. Our receiver dryers also feature a pressure switch - that with a relay, can control high current condenser fans, or your electric engine thermo fan, if no space for a condenser fan.
A receiver dryer is required in an air conditioning system to arrest moisture, the leading cause of corrosion in an air conditioning system.

These are not supplied by most other sellers.
