Bulkhead kit to suit our Base Electric, Upgraded Electric & Mechanical AC Kits

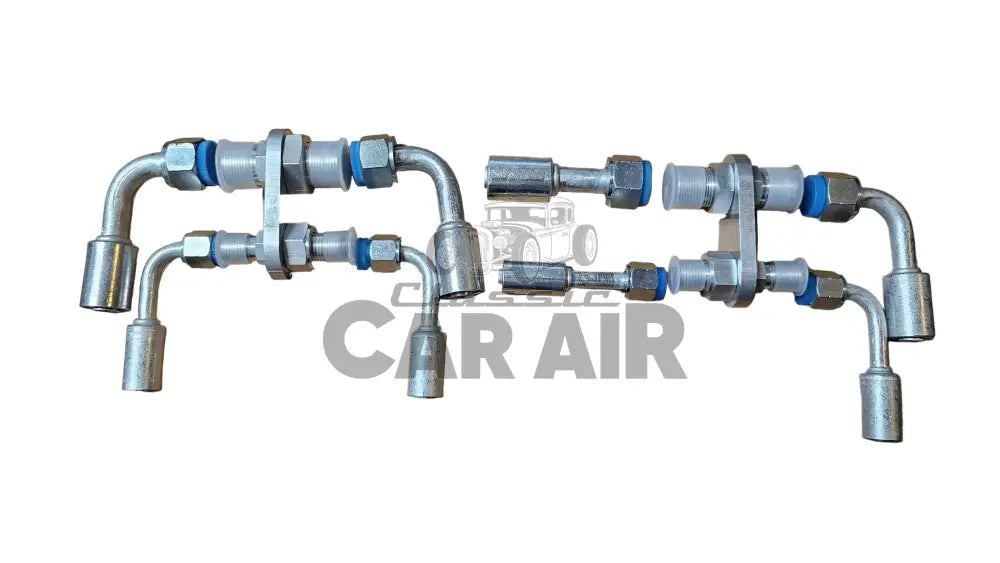

Classic Car Air under guard bulkhead kit includes:

(2 x bulkheads and 8 fittings)

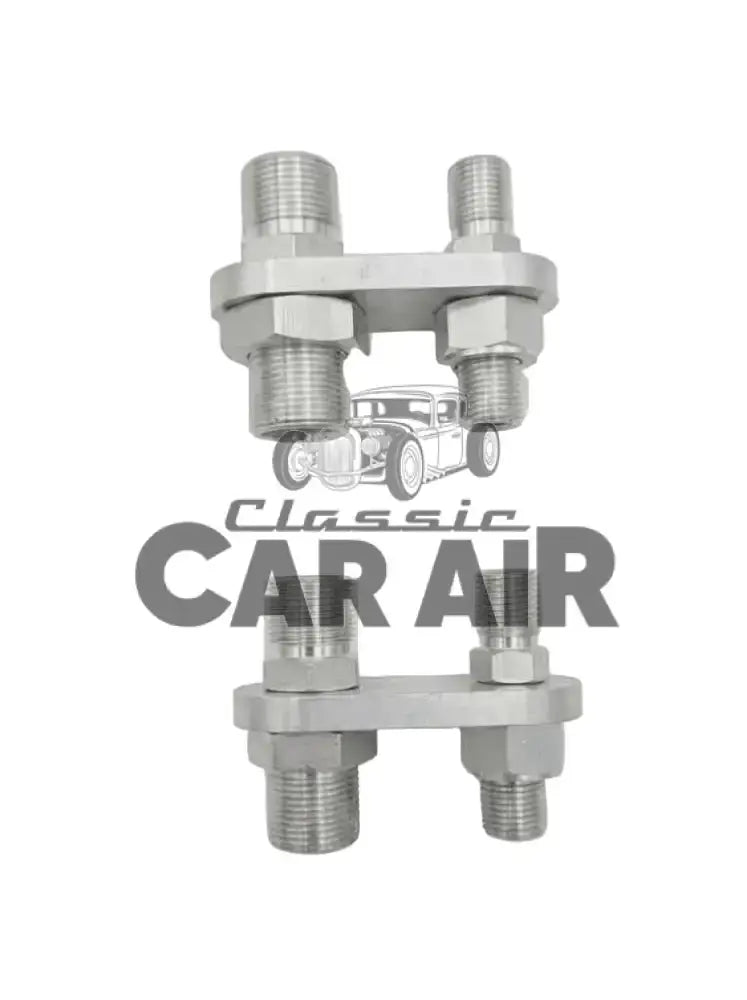

1 x Firewall bulkhead - (size #10 & #6) insert O-ring style
1 x Radiator support bulkhead - (size #8 & #6) insert O-ring style

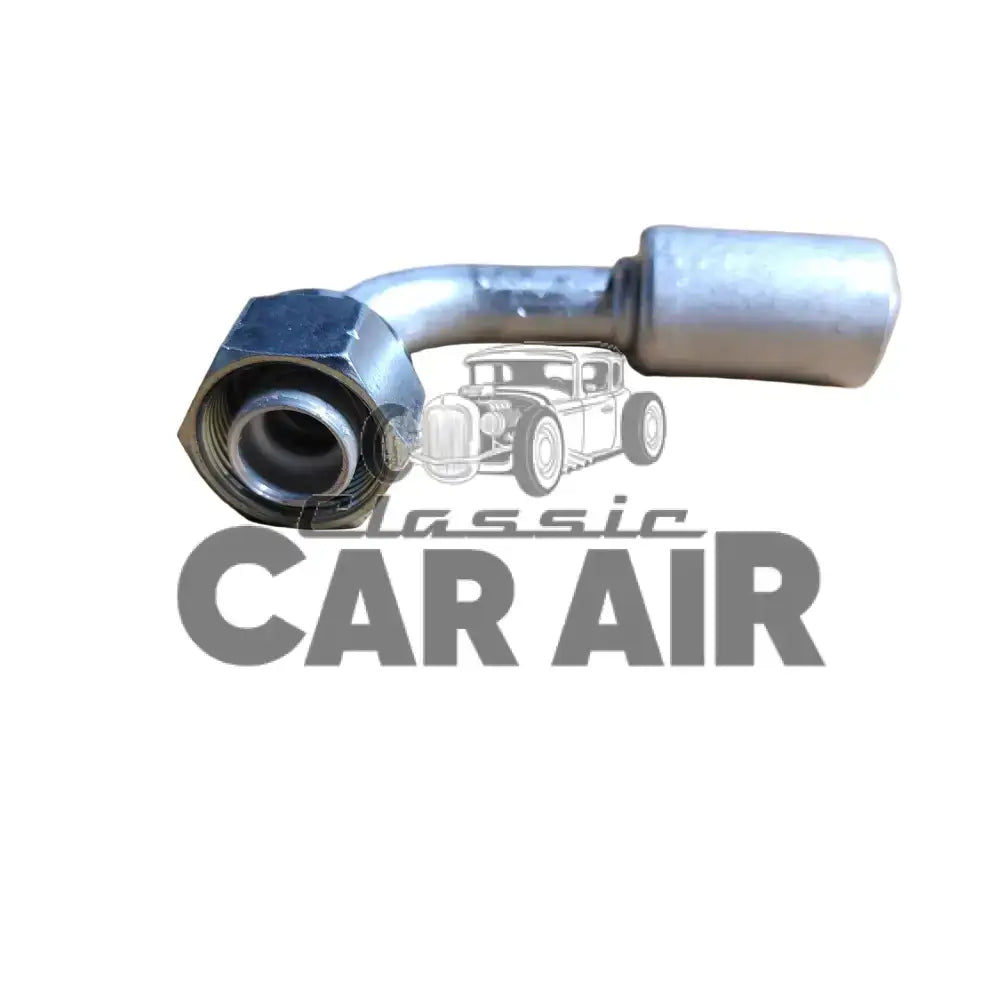

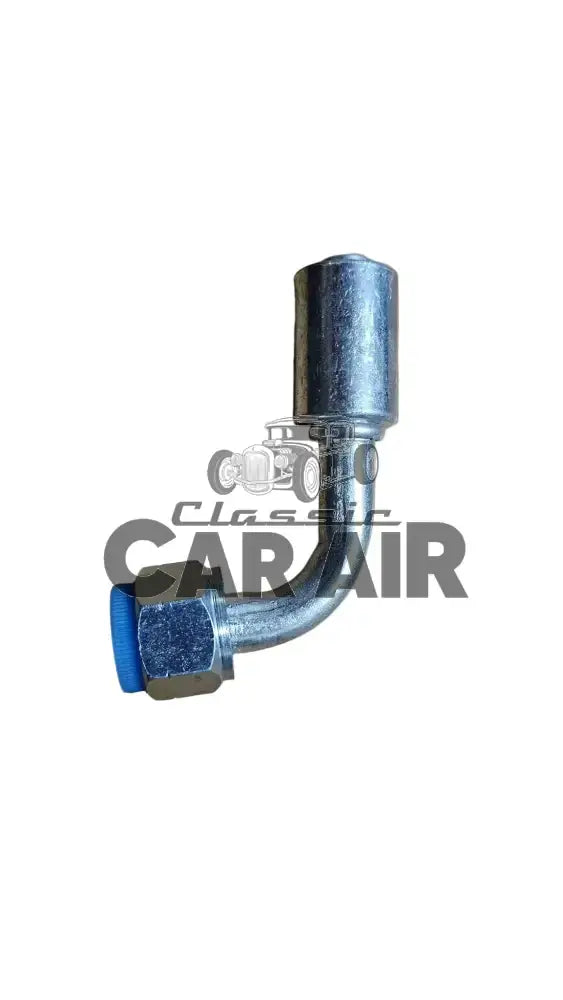

2 x #10 right angle insert O-ring (firewall bulkhead)

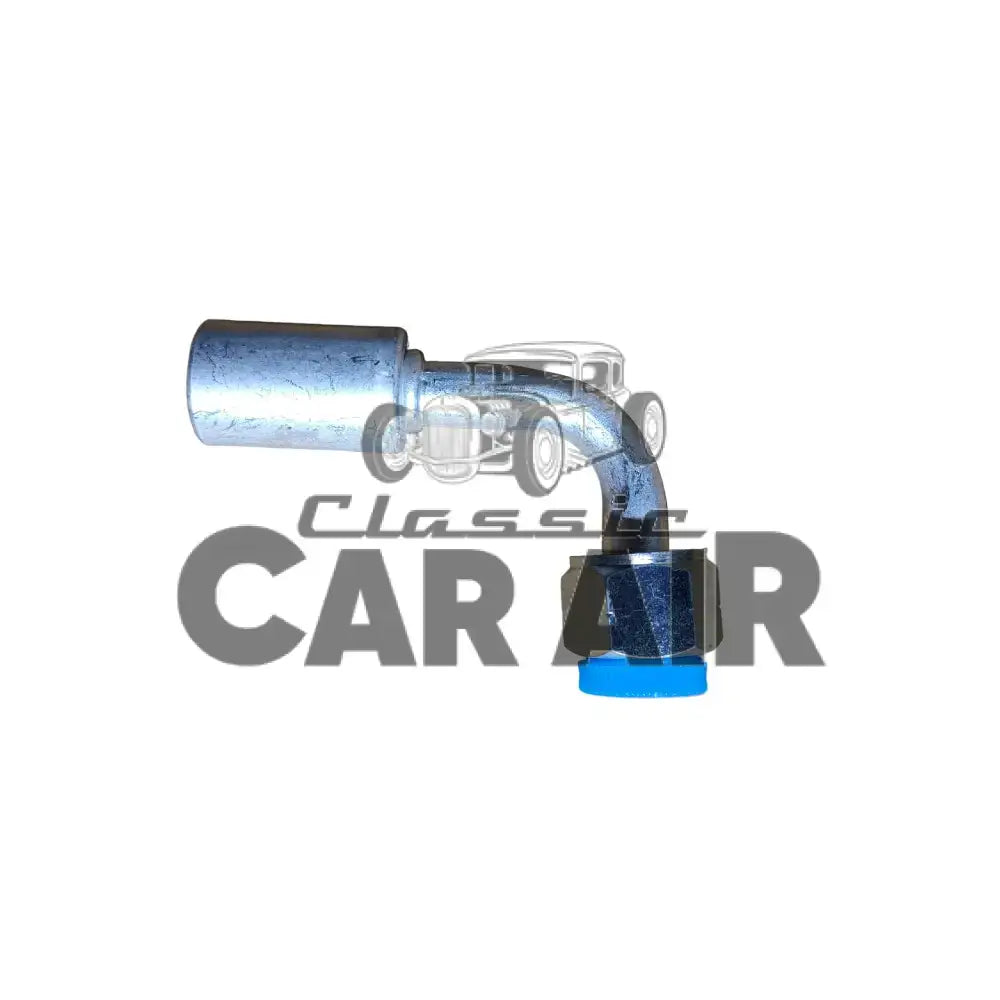

2 x #6 right angle insert O-ring (firewall bulkhead)

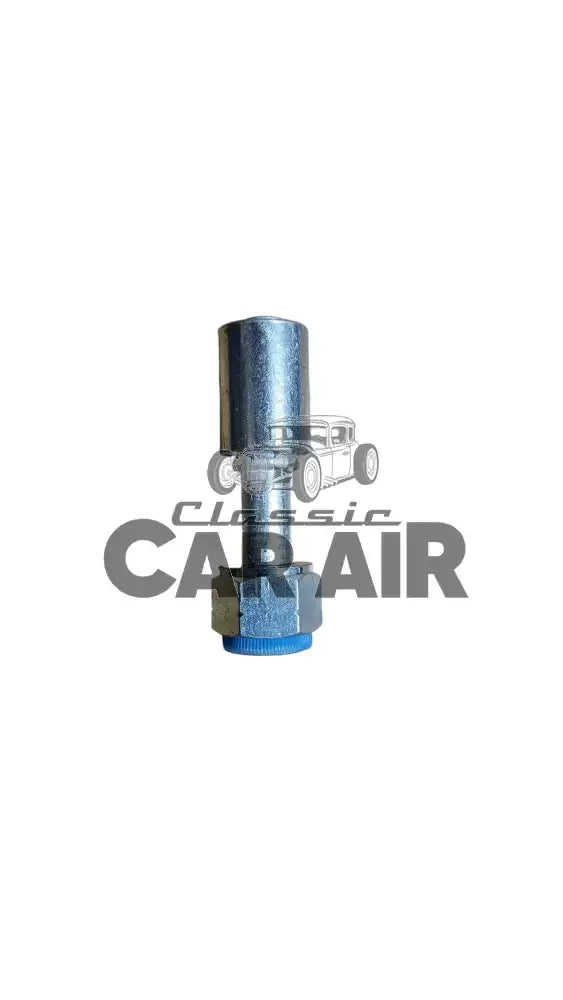

1 x #8 straight insert O-ring (radiator support)

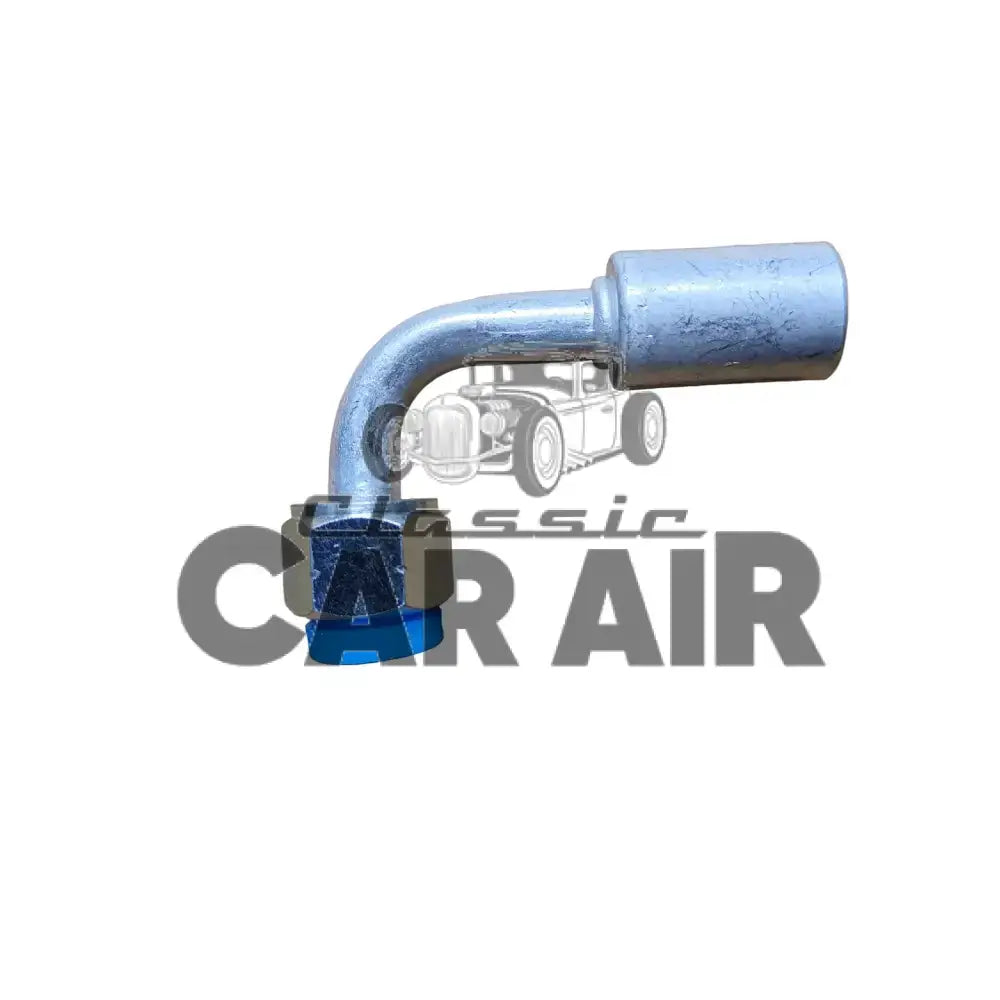

1 x #8 right angle insert O-ring (radiator support)

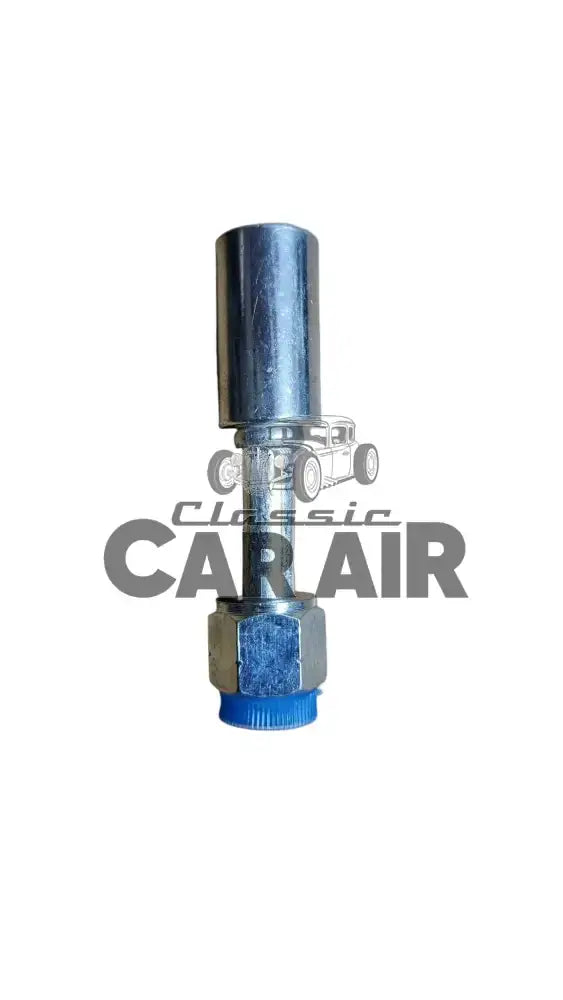

1 x #6 straight insert O-ring (radiator support)
1 x #6 straight insert O-ring (radiator support)

*THIS KIT FITS - Our Base model, and both upgrades electric and mechanical kits only.

This configuration is useful for hiding your hoses under the guard.
The right angle fittings allows your hoses to be mounted flat up against the inside of the firewall, same under guard and at the radiator support without a chance of kinking a hose due to sharp bend radius.

We can also supply these in the following combination of fitting: straight or right angle, with or without filler ports. Simply send us a message and we'll customise it to suit you.

Note: Inset O-ring is a metric fitting and is compatible with our Kemo reduced barrier hose.
